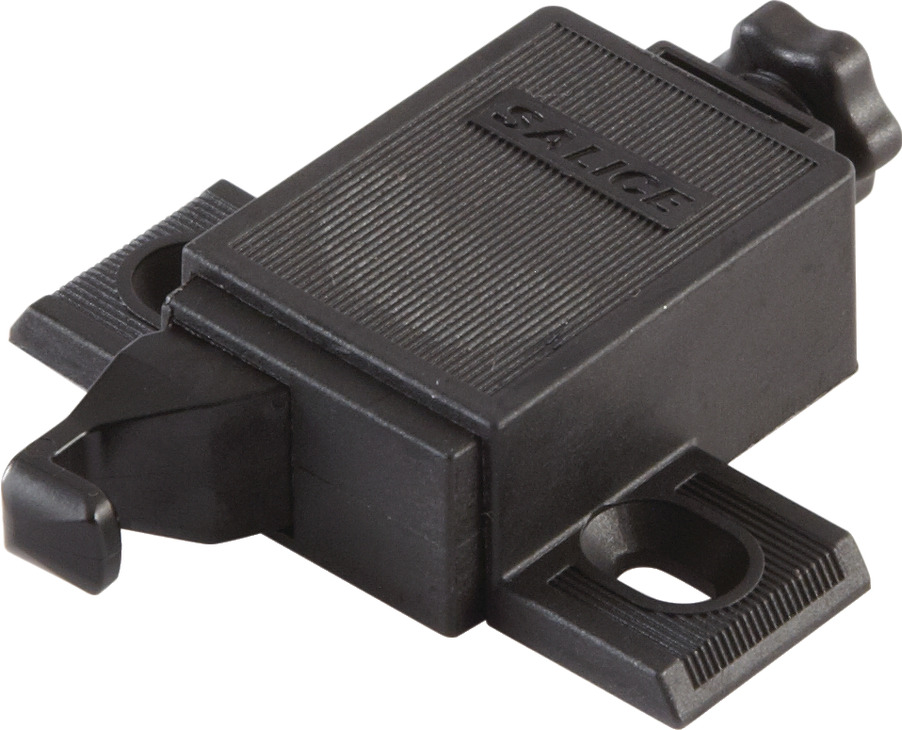

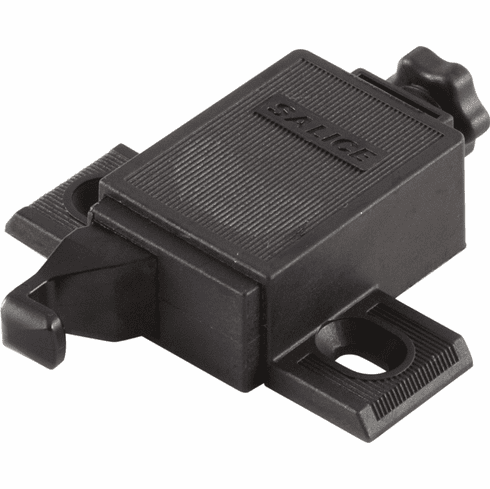

Hafele 329.44.371 Single PUSH Latch, with Adjustment Salice, DP4SN3, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.44.371

  Product Title: Single PUSH Latch, with Adjustment, Salice, DP4SN3, black

  Category: Single PUSH Latch, with Adjustment, Salice

  Item Details …

  - For doors taller than 1600 mm (63”), 2 push latches are recommended

  - Aim hooks toward hinges

  - Installation : For screw fixing with single adapter

  - Version : With adjustmentSingle

  - Material : Plastic

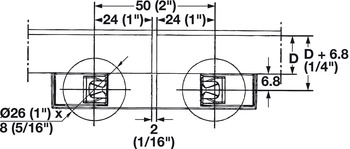

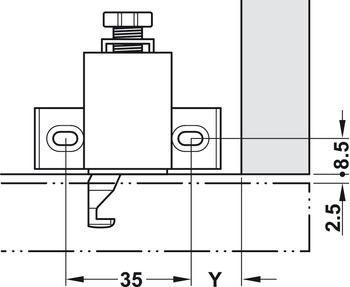

  - Adjustment facility : Side adjustment: ±2 mm, Depth adjustment: -1?–?2.5 mm, depth adjustment via wheel at the adapter, side adjustment via slot

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.31



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.44.371, 329-44-371, 32944371, 329.44


  Specifications/Hafele Catalog - Page# FC9.38: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Double PUSH Latch, with Adjustment
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Full Overlay
  • Concealed Hinge, Salice PUSH, 110° Opening Angle, Self Opening, Half Overlay
  • Concealed Hinge, Salice PUSH 110° Opening Angle, Self-Opening, Inset Mounting
  • Catch for PUSH Hinge, Press-Fit
  • Door Catch, for Screw-mount Catch
  • Locking Part, for Screw-Mount Catch
  • Concealed Hinge, Salice PUSH, 165° Opening Angle, Self-Opening, Half Overlay
  • Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Full Overlay
  • Concealed Hinge, Salice PUSH, 155°/165° Opening Angle, Self-Opening, Inset Overlay
