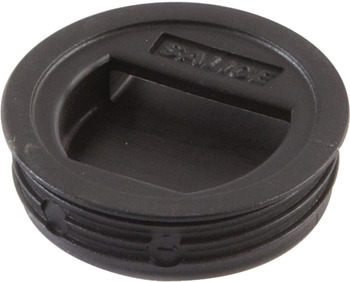

Hafele 329.44.332 Catch for PUSH Hinge, Press-Fit Salice, DP29SN3, Black
Product Information
Description
Manufacturer: Hafele
Item: 329.44.332
Product Title: Catch for PUSH Hinge, Press-Fit, Salice, DP29SN3, Black
Category: Catch for PUSH Hinge, Press-Fit, Salice
Item Details …
- For doors taller than 1600 mm (63”), 2 push latches are recommended

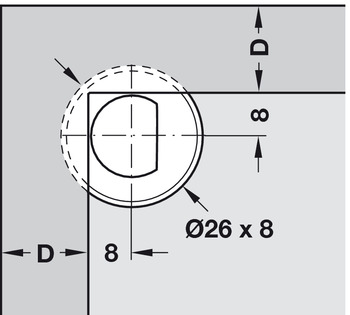

- Installation : Cabinet, top or base panel
- Thickness : 8.00 mm
- Diameter : 26.00 mm
- Area of application : For overlay doors
- Material : Plastic
- For drill hole Ø : 26.00 mm

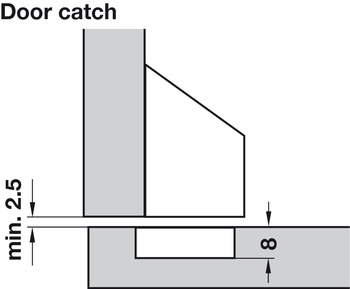

- Drilling depth : 8.00 mmData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_9.30-9.33.pdfHafele 329.44.332, 329-44-332, 32944332, 329.44
Specifications/Hafele Catalog - Page# FC9.39:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Hinges & Stays Catalog
Return to: All Hafele CatalogsDownload
Adobe PDF Reader
Brand PDF Catalogs
Click on a Category to open a PDF catalog:
Sliding and Folding Catalog
Fineline Brochure
Free Flap Fittings Brochure
The Complete Architectural Hardware Catalog
Dialock In Hotels Catalog
Dialock System Catalog
IXConnect Invisible Heroes
One Room One Face Catalog
Architectural Hardware: American Standard Catalog
Closet Catalog
Decorative Wood Catalog
Cornerstone Catalog
Decorative Hardware Catalog
Kitchen Solutions Catalog
Loox5 Lighting Catalog
Furniture Cabinetry Hardware Catalog
Designing Accessibility HEWI Catalog
The Complete CabinetRequired Products & Optional Accessories
Note: Add the current product in cart before ordering required products below ...
Required Products:
PUSH Latch, without Adjustment (choose one):Salice, DP3SN3R, black
Salice, DP3SNBR, beige329.44.301
329.44.401Click to order
Click to order
Optional Accessories:- PUSH Latch, without Adjustment
- Single PUSH Latch, with Adjustment
- Double PUSH Latch, with Adjustment
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
