Hafele 329.44.391 Double PUSH Latch, with Adjustment Salice, DP5SN3, black

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.44.391

  Product Title: Double PUSH Latch, with Adjustment, Salice, DP5SN3, black

  Category: Double PUSH Latch, with Adjustment, Salice

  Item Details …

  - For doors taller than 1600 mm (63”), 2 push latches are recommended

  - Aim hooks toward hinges

  - Installation : For screw fixing with double adapter

  - Version : With adjustmentDouble

  - Material : Plastic

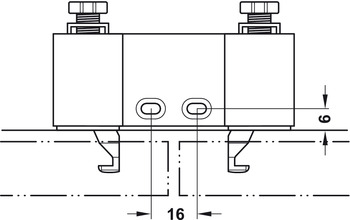

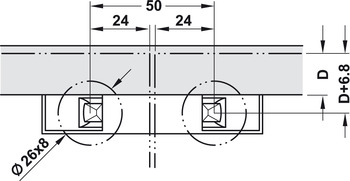

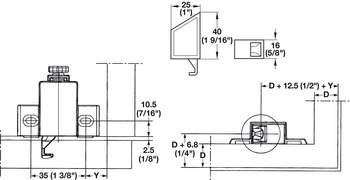

  - Adjustment facility : Side adjustment: ±2 mm, Depth adjustment: -1?–?2.5 mm, depth adjustment via wheel at the adapter, side adjustment via slot

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.31



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.30-9.33.pdf

  Hafele 329.44.391, 329-44-391, 32944391, 329.44
