Hafele 329.23.630 Aluminum Frame Door Hinge, Salice, 105 degree Opening Angle, Self Closing, Half Overlay for Quick Door Aluminum Frame Doors, model C2Z6G99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.23.630

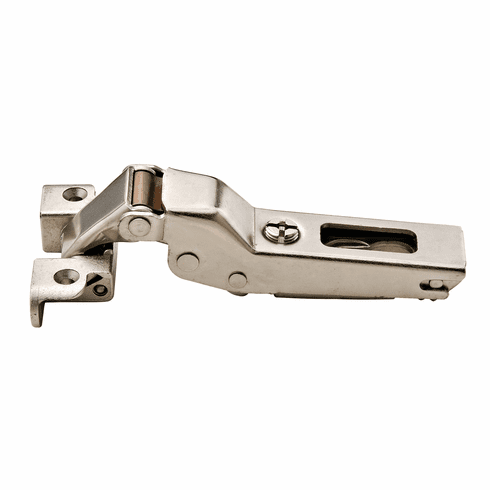

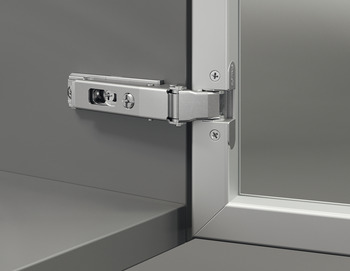

  Product Title: Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Closing, Half Overlay, for Quick Door™ Aluminum Frame Doors, model C2Z6G99

  Category: Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Closing, Half Overlay, for Quick Door™ Aluminum Frame Doors, model C2Z6G99

  Item Details …

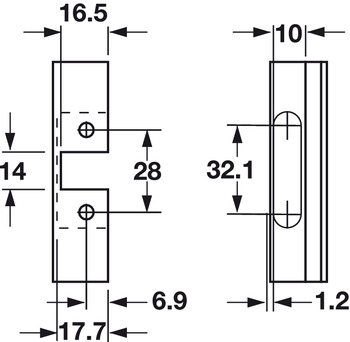

  - Developed for use with metal profiles (563.55.931, 563.55.031, 563.55.911)

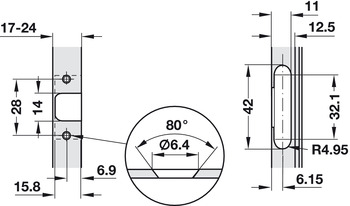

  - A Ø3.5 x 9.5 mm (#6 x 3/8”) countersunk sheet metal screw to attach hinge to frame is recommended

  - Area of application : for narrow aluminium frames, width from 17 to 24 mm

  - Version : With automatic closing spring

  - Concealed hinge version : Half overlay mounting/twin mounting

  - Crank type : Cranked

  - For door material : aluminium frame

  - Door processing for assembly : without

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 105°

  - For aluminum frame width : 17?–?24 mm

  - Cup fixing : for screw fixing

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

  - Order reference

  - Please order screw Cat. No. 028.01.062 separately.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.186



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.165-9.165.pdf

  Hafele 329.23.630, 329-23-630, 32923630, 329.23


  Specifications/Hafele Catalog - Page# FC9.149: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs
