Hafele 329.23.610 Aluminum Frame Door Hinge, Salice, 105 degree Opening Angle, Self Closing, Full Overlay for Quick Door Aluminum Frame Doors, model C2Z6A99

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.23.610

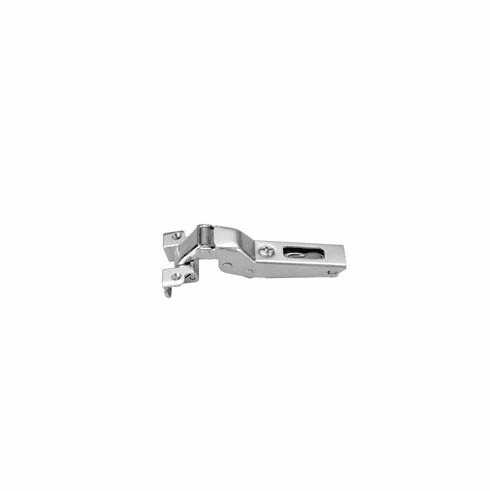

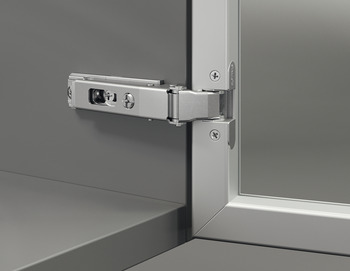

  Product Title: Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Closing, Full Overlay, for Quick Door™ Aluminum Frame Doors, model C2Z6A99

  Category: Aluminum Frame Door Hinge, Salice, 105° Opening Angle, Self Closing, Full Overlay, for Quick Door™ Aluminum Frame Doors, model C2Z6A99

  Item Details …

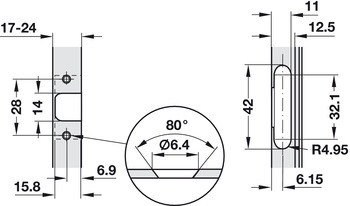

  - Developed for use with metal profiles (563.55.931, 563.55.031, 563.55.911)

  - A Ø3.5 x 9.5 mm (#6 x 3/8”) countersunk sheet metal screw to attach hinge to frame is recommended

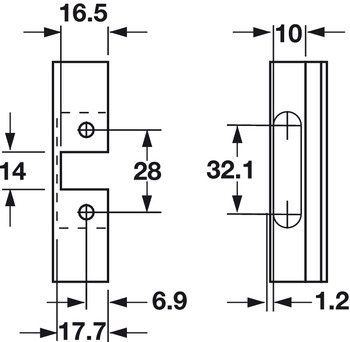

  - Area of application : for narrow aluminium frames, width from 17 to 24 mm

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : aluminium frame

  - Door processing for assembly : without

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 105°

  - For aluminum frame width : 17?–?24 mm

  - Cup fixing : for screw fixing

  - Installation : Door on cabinet with slide-on system A or quick fixing system SM

  - Order reference

  - Please order screw Cat. No. 028.01.062 separately.
