Hafele 329.71.500 Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws 0 mm, BAR3R09, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 329.71.500

  Product Title: Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric, 0 mm, BAR3R09, nickel-plated

  Category: Aluminum Frame Wing Mounting Plate, Salice, Without Pre-Installed Euro Screws, quick fixing system, pre-mounted Euro screws, depth adjustable via eccentric

  Item Details …

  - Automatic Adjustment Response feature: a slight turn of the depth adjustment cam or vertical cam quickly positions hinge – eliminating need for manual positioning by loosening screws.

  - Area of application : For Häfele Metalla 510 concealed hinges

  - Version : with quick fixing system and eccentric adjustment

  - Material : Zinc alloy

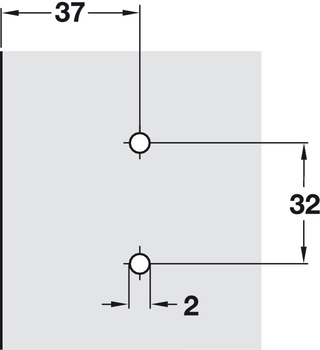

  - For drill hole Ø : 2.00 mm

  - Screw distance : 32.00 mm

  - Edge distance : 37.00 mm

  - Adjustment facility : Height adjustment Via eccentric ±2 mm, Depth adjustment Via eccentric -0.5 mm to +2.8 mm

  - Fixing method : Quick fixing system SM

  - Mounting plate version : for screw fixing with chipboard screws

  - Manufacturer : Häfele

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.121

  TCH_Furniture_Cabinetry_Hardware_2022|Page 7.122

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.178

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.186



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.38-9.43.pdf

  Hafele 329.71.500, 329-71-500, 32971500, 329.71


  Specifications/Hafele Catalog - Page# FC9.41: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Hinges & Stays Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Mounting Plate, Salice, With Pre-Installed Euro Screws
  • Flat Head Screw, Hospa, countersunk head, PZ, fully threaded
