Hafele 327.20.002 S-Series Concealed Hinge, Stainless Steel, Opening Angle 100 degree, Half Overlay For increased requirements on corrosion

Product Information

• Description

  Manufacturer: Hafele
  Item: 327.20.002

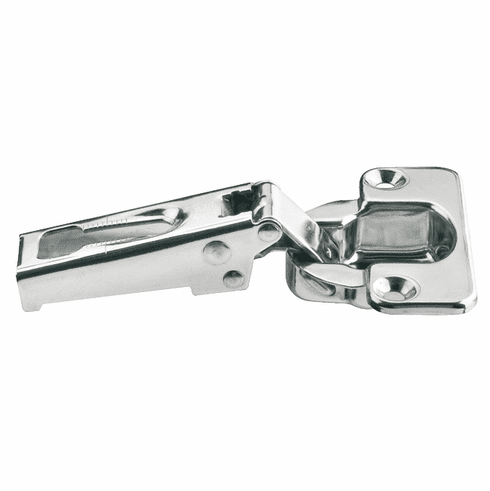

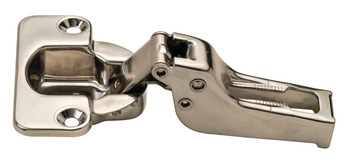

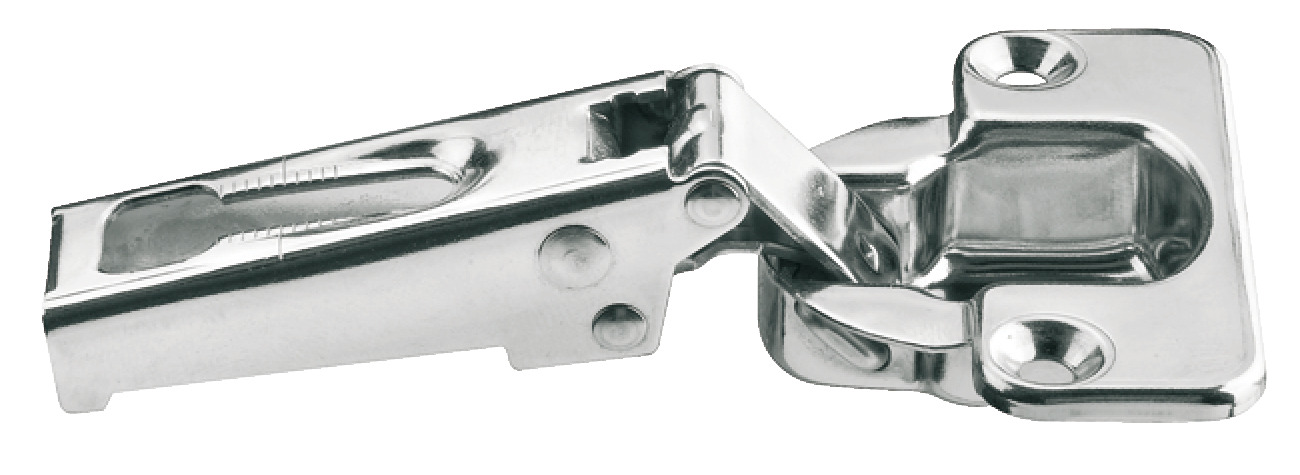

  Product Title: S-Series Concealed Hinge, Stainless Steel, Opening Angle 100°, Half Overlay, For increased requirements on corrosion, half overlay, 9mm crank hinge arm

  Category: S-Series Concealed Hinge, Stainless Steel, Opening Angle 100°, Half Overlay, For increased requirements on corrosion, half overlay, 9mm crank hinge arm

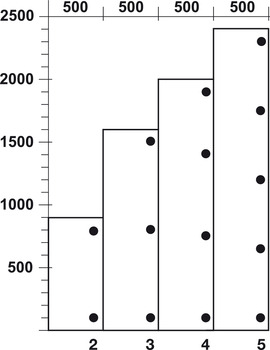

  Item Details …

  - S-Series hinges will only work with S-Series mounting plates

  - Pivot pin for hinge arm is steel, sealed against corrosion

  - Area of application : for increased corrosion requirements

  - Version : With automatic closing spring

  - Concealed hinge version : half overlay

  - Crank type : Cranked

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Stainless steel, quality 1.4301 (V2A)

  - Color/finish : polished

  - Opening angle : 100°

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 43/4

  - Adjustment facility : 3-dimensional (with appropriate mounting plate)

  - Installation : Door on cabinet with slide-on system

  - Supplied with:

  - Stainless Steel screws


  Additional Information …

  Use stainless steel screws to avoid contact corrosion. The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
