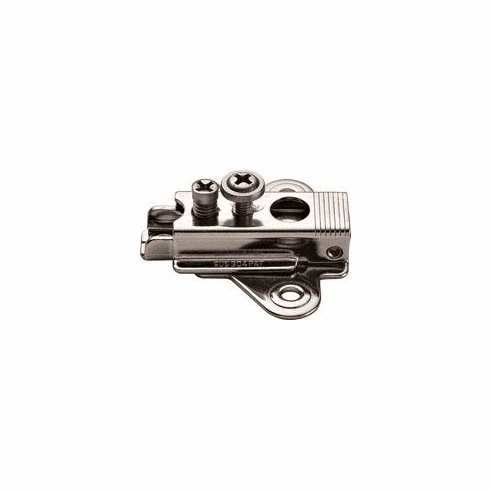

Hafele 327.30.000 Mounting Plate, Flanged, 304 Stainless Steel S-Series, side adjustment

Product Information

• Description

  Manufacturer: Hafele
  Item: 327.30.000

  Product Title: Mounting Plate, Stainless steel, S-Series, side adjustment

  Category: Mounting Plate, Stainless steel, S-Series

  Item Details …

  - Area of application : For stainless steel concealed hinges

  - Material : Stainless steel, quality 1.4301/AISI 304

  - Color/finish : polished

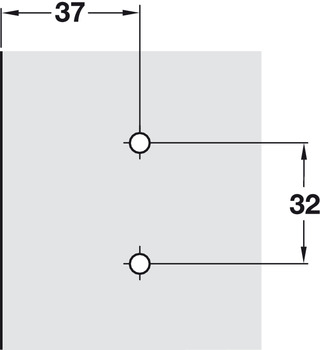

  - Screw distance : 32.00 mm

  - Fixing method : Slide-on system A

  - Supplied with:

  - Stainless Steel screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 9.73



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_9.66-9.66.pdf

  Hafele 327.30.000, 327-30-000, 32730000, 327.30
