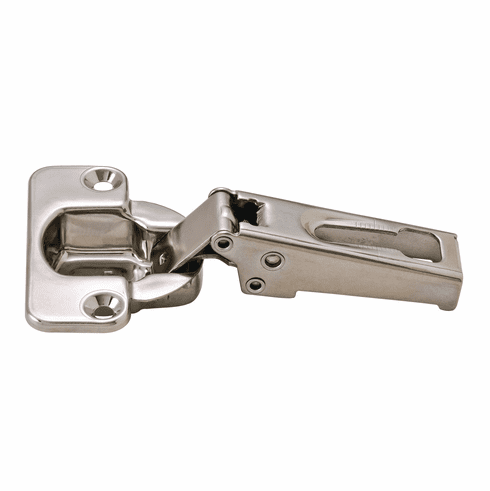

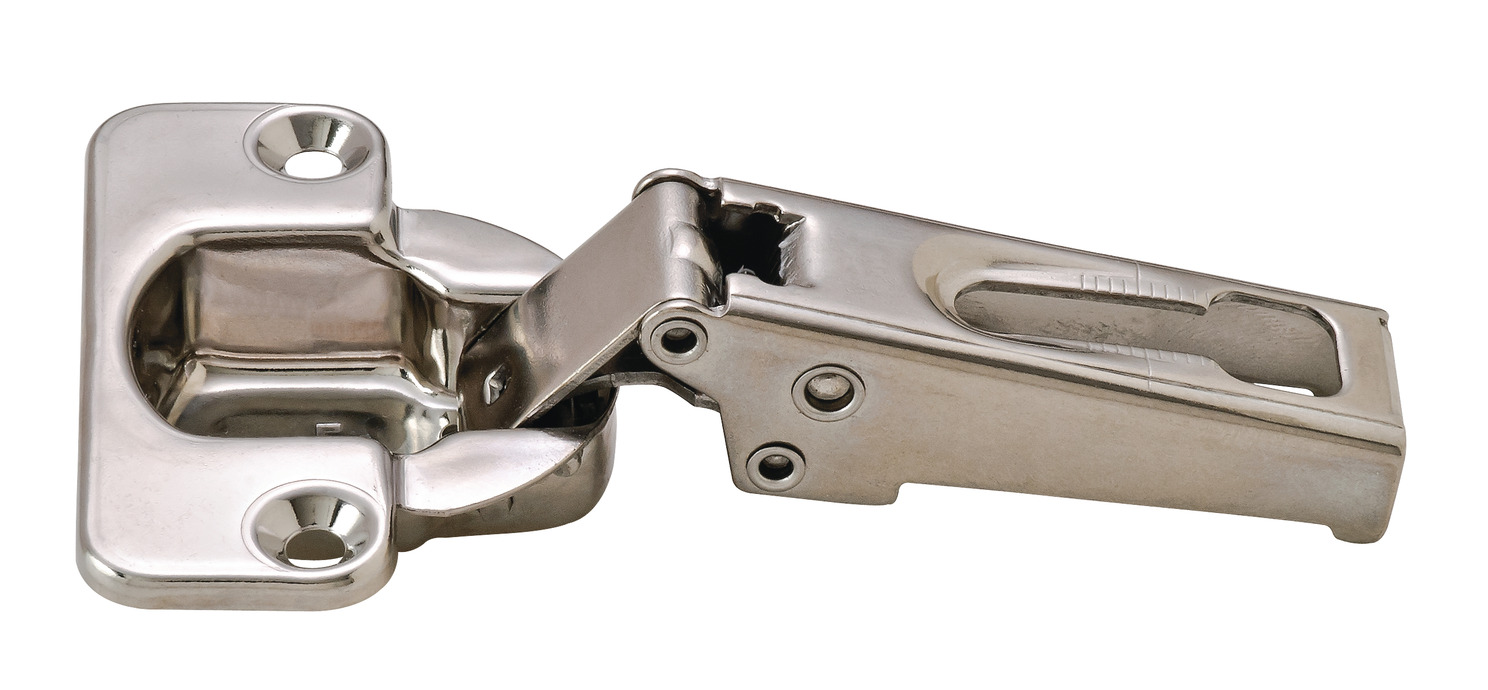

Hafele 327.20.000 S-Series Concealed Hinge, Opening Angle 100 degree, Full Overlay

Product Information

• Description

  Manufacturer: Hafele
  Item: 327.20.000

  Product Title: S-Series Concealed Hinge, Opening Angle 100°, Full Overlay, For increased requirements on corrosion, straight hinge arm

  Category: S-Series Concealed Hinge, Opening Angle 100°, Full Overlay, For increased requirements on corrosion, straight hinge arm

  Item Details …

  - S-Series hinges will only work with S-Series mounting plates

  - Pivot pin for hinge arm is steel, sealed against corrosion

  - Area of application : for increased corrosion requirements

  - Version : Increased corrosion requirements

  - Version : With automatic closing spring

  - Concealed hinge version : full overlay

  - Crank type : Straight

  - For door material : wood

  - Door processing for assembly : with cup drilling

  - Material : Stainless steel, quality 1.4301 (V2A)

  - Color/finish : polished

  - Opening angle : 100°

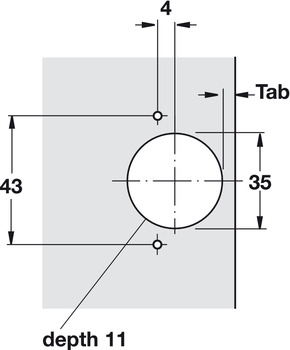

  - Cup drilling depth : 11.00 mm

  - Cup drilling Ø : 35.00 mm

  - Cup fixing : for screw fixing

  - Drilling pattern : 43/4

  - Adjustment facility : 3-dimensional (with appropriate mounting plate)

  - Installation : Door on cabinet with slide-on system

  - Supplied with:

  - Stainless Steel screws


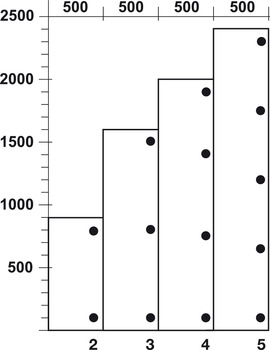

  Additional Information …

  Use stainless steel screws to avoid contact corrosion. The suitability of the stainless steel that is used for the intended application area must be assured by separate testing from case to case.
