Hafele 325.02.702 Miter Flap Hinge, 90 degree Opening Angle For doors and flaps

Product Information

• Description

  Manufacturer: Hafele
  Item: 325.02.702

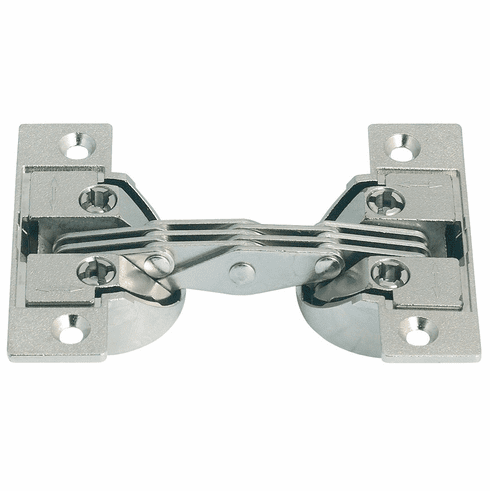

  Product Title: Miter Flap Hinge, 90° Opening Angle, For doors and flaps, nickel plated, zinc alloy/steel

  Category: Miter Flap Hinge, 90° Opening Angle, For doors and flaps, nickel plated, zinc alloy/steel

  Item Details …

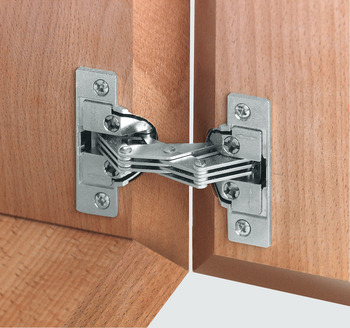

  - the only hinge that can be used for furniture structures with mitred cabinet corners and flap

  - Area of application : Use in combination with flap and lid stays

  - For door material : wood

  - Material : Cup: Zinc alloy, Hinge arm: Steel

  - Color/finish : nickel plated

  - Opening angle : 90°

  - For lid thickness : 16?–?22 mm

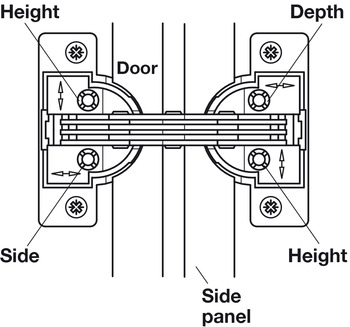

  - Adjustment facility : Side adjustment 1.5 mm

  - Installation : Screw fixing


  Additional Information …

  To be used in combination with flap stay only.The edge must be chamfered by 3 mm from a side panel thickness of 20 mm.
