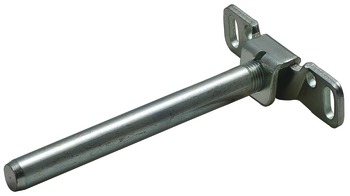

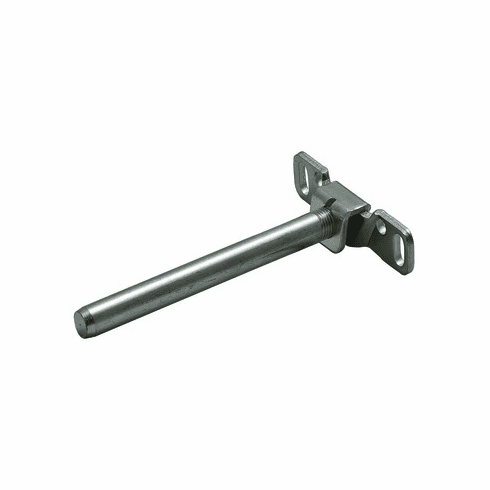

Hafele 283.33.941 Shelf Support, with Inclination Adjustment

Product Information

• Description

  Manufacturer: Hafele
  Item: 283.33.941

  Product Title: Shelf Support, with Inclination Adjustment,

  Category: Shelf Support, with Inclination Adjustment,

  Item Details …

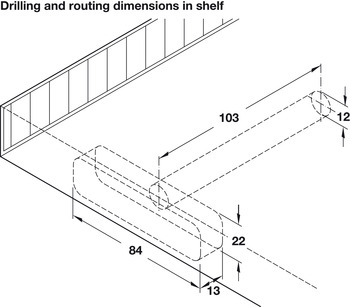

  - Proper routing for the shelf support on rear edge of the panel will serve as an anti-tip feature when shelf is mounted. Applying a small amount of silicone adhesive will help secure the shelf support to the panel.

  - Adjustment facility : Inclination: Via support boltHeight: Via support boltSide: +/- 2.5 mm via locking screw

  - For shelf thickness : ?24 mm

  - Version : For concealed installation with screw-on plate and adjustment

  - Area of application : For concealed installation with screw mount plate and adjustment

  - Material : Steel

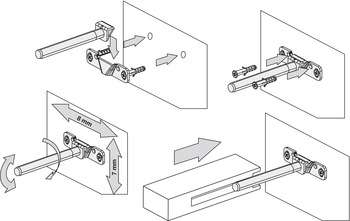

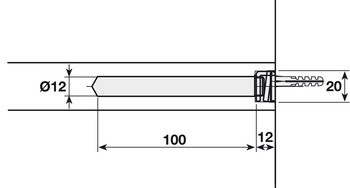

  - Installation : For screw fixing to support elementFor mounting in drilled hole in shelf

  - Supplied with:

  - 4 Plastic wall plugs

  - Screws (4 pcs.)

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.130

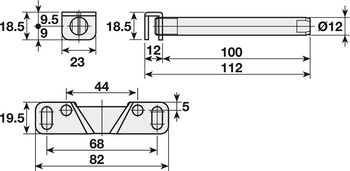

• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.64-11.66.pdf

  Hafele 283.33.941, 283-33-941, 28333941, 283.33


  Specifications/Hafele Catalog - Page# FC11.72: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
