Hafele 283.32.014 Shelf Support, 12 mm, Press-Fit Type Wall mounting, concealed, For shelf thickness: 19mm and up
Product Information
Description
Manufacturer: Hafele
Item: 283.32.014
Product Title: Shelf Support, 12 mm, Press-Fit Type, Wall mounting, concealed, For shelf thickness: ?19 mm
Category: Shelf Support, 12 mm, Press-Fit Type, Wall mounting, concealed, For shelf thickness: ?19 mm
Item Details …
- Diameter quoted = Eccentric diameter
- Shelf supports, for invisible fastening of shelves with a 19 mm wood thickness or greater in living room, kitchen, bath and bedroom areas.
- Adjustment without tools by turning the plastic sleeve
- The hexagonal end on the shelf support permits installation with 1/4" using a cordless drill or a 6 mm open end or box-end wrench

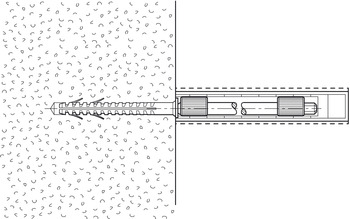

- Can be installed directly into masonry walls or woodwork
- To make adjustments possible, the insertion hole must be laterally elongated, with a slot drilling machine or a chain mill

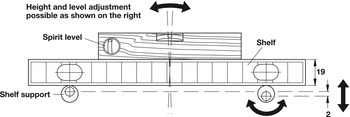

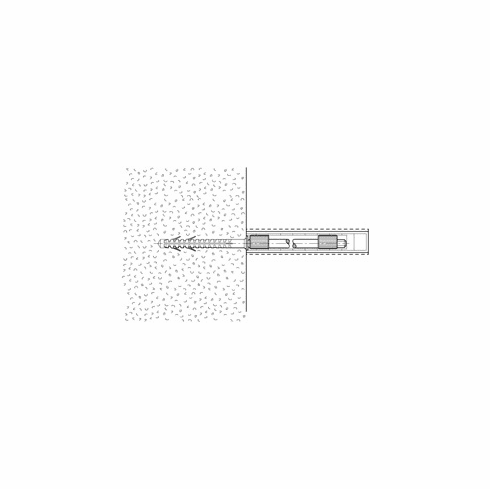

- Adjust height and level, set the shelf on the shelf supports mounted in the wall and then adjust by turning the plastic sleeves
- Adjustment facility : Inclination: ±1 mm
- For shelf thickness : ?19 mm
- Diameter : 12.20 mm
- Color/finish : Zinc plated
- Version : Support bolt with eccentric sleeve, wood-screw thread and wall plug
- Area of application : For concealed installation
- Material : Steel
- Drive : SW6
- Installation : For screw fixing to support elementfor mounting in drilled hole in shelf
- Installation reference : Shelf supports, for invisible fastening of shelves with a 19 mm wood thickness or greater in living room, kitchen, bath and bedroom areas.Adjustment without tools by turning the plastic sleeve The hexagonal end on the shelf support permits installation with 1/4" using a cordless drill or a 6 mm open end or box-end wrenchCan be installed directly into masonry walls or woodworkTo make adjustments possible, the insertion hole must be laterally elongated, with a slot drilling machine or a chain millAdjust height and level, set the shelf on the shelf supports mounted in the wall and then adjust by turning the plastic sleeves
- Supplied with:
- 1 support bolt
- 2 pre-mounted eccentric sleeves
- 1 washer
- 1 Fischer S8H 80R wall plug
Additional Information …

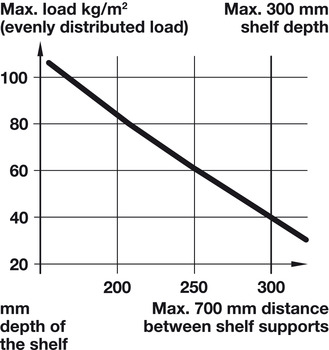

Max. distance between two shelf supports: 700 mmThe mounting method depends on the wall material: Please check screws and wall plugs in accordance with the type of wall, use other fixing material if necessary.Data Sheet
