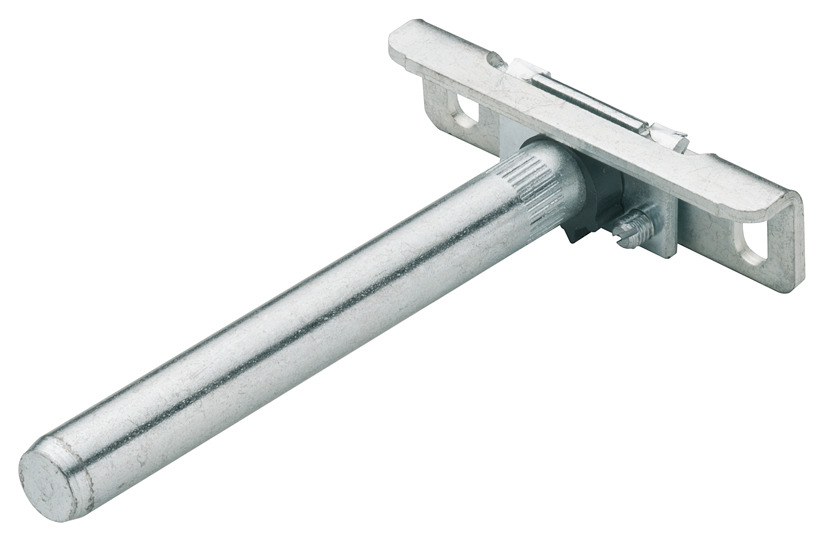

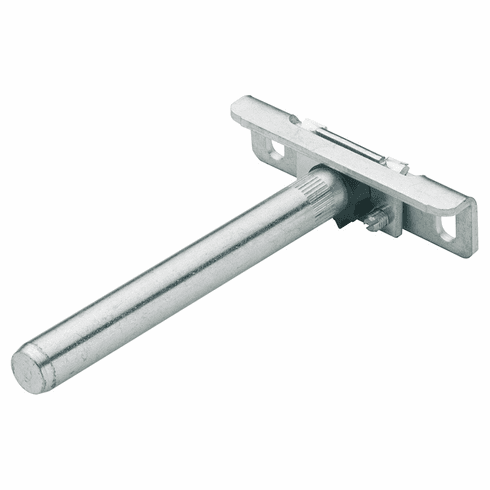

Hafele 283.33.904 Shelf Support, with Screw-On Plate, Side, Height and Tilt Adjustment Wall mounting, concealed, eccentric sleeve plastic, Galvanized
Product Information
Description
Manufacturer: Hafele
Item: 283.33.904
Product Title: Shelf Support, with Screw-On Plate, Side, Height and Tilt Adjustment, Wall mounting, concealed, eccentric sleeve plastic, Galvanized
Category: Shelf Support, with Screw-On Plate, Side, Height and Tilt Adjustment, Wall mounting, concealed, eccentric sleeve plastic, Galvanized
Item Details …
- Adjustment facility : Tilt adjustment: via adjusting screwsHeight adjustment: via slots in screw-on plateSide adjustment: sliding via slot ±3 mm
- For shelf thickness : ?24 mm
- Color/finish : Zinc plated
- Version : With screw-on plate and eccentric sleeve
- Area of application : For concealed installation
- Material : Steel
- Installation : For screw fixing to support elementfor mounting in drilled hole in shelf
Additional Information …
Max. distance between two shelf supports: 700 mmData Sheet
Product Resources
Specifications
Hafele 283.33.904 Shelf Support With Plate St Blk 110Mm (11X7X2 Cm) - 20 Pcs
Product Specifications:
