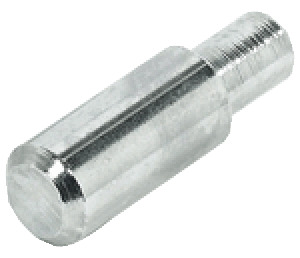

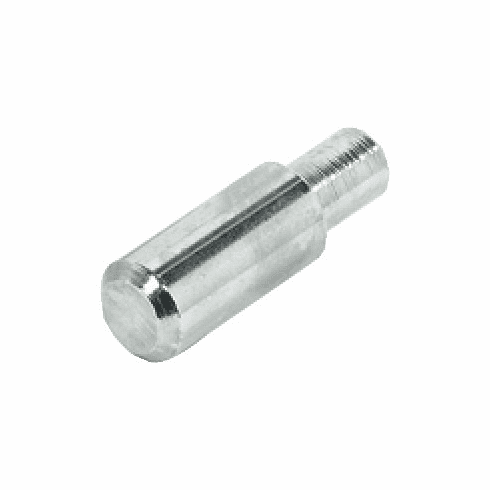

Hafele 282.38.708 Shelf Support, For wooden shelves, steel for plug fitting into drill hole dia. 5 mm, Nickel-plated
Product Information
Description
Manufacturer: Hafele
Item: 282.38.708
Product Title: Shelf Support, Ø5 mm, For wooden shelves, steel, for plug fitting into drill hole ? 5 mm, Nickel-plated
Category: Shelf Support, Ø5 mm, For wooden shelves, steel, for plug fitting into drill hole ? 5 mm
Item Details …
- Area of application : for wooden shelves
- Installation : For insert fitting

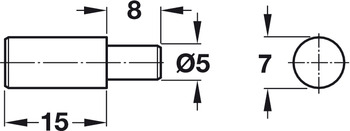

- For drill hole Ø : 5.00 mm
- Length : 23.00 mm
- Support size : 3.50 mm
- Pin length : 8.00 mm
- Material : Steel
- Load bearing capacity with 4 shelf supports : 80.00 kg
- Load bearing capacity : 175 lbs
- Note on load bearing capacity : Load bearing capacity specified in accordance with DIN EN 1727:1998-06Data Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.68-11.76.pdfHafele 282.38.708, 282-38-708, 28238708, 282.38
Specifications/Hafele Catalog - Page# FC11.78:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
Return to: All Hafele CatalogsDownload
