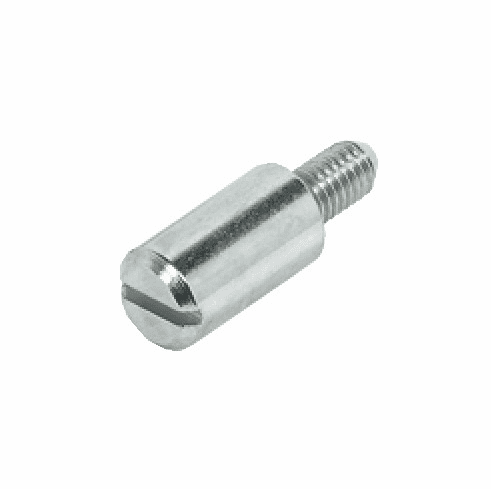

Hafele 282.39.705 Shelf Support, steel, nickel-plated, M4, x 8mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.39.705

  Product Title: Shelf Support, with M4 Thread, Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), M4 threaded pin, Nickel-plated

  Category: Shelf Support, with M4 Thread, Steel, load-bearing capacity 80 kg (in compliance with DIN EN 1727:1998-06), M4 threaded pin, Nickel-plated

  Item Details …

  - Area of application : for wooden shelves

  - Color/finish : nickel plated

  - Installation : For screwing into spreading sleeve

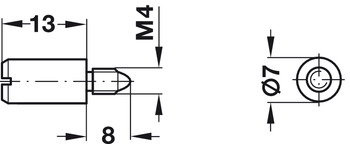

  - For drill hole Ø : 5.00 mm

  - Support size : 3.50 mm

  - Pin length : 8.00 mm

  - Version : With M4 threaded bolt

  - Material : Steel

  - Load bearing capacity with 4 shelf supports : 80.00 kg

  - Load bearing capacity : 175 lbs

  - Note on load bearing capacity : recommended load-bearing capacity

  - Order reference

  - Please order sleeve for drill hole Ø 5 mm separately (Cat. No. 051.45.004).
