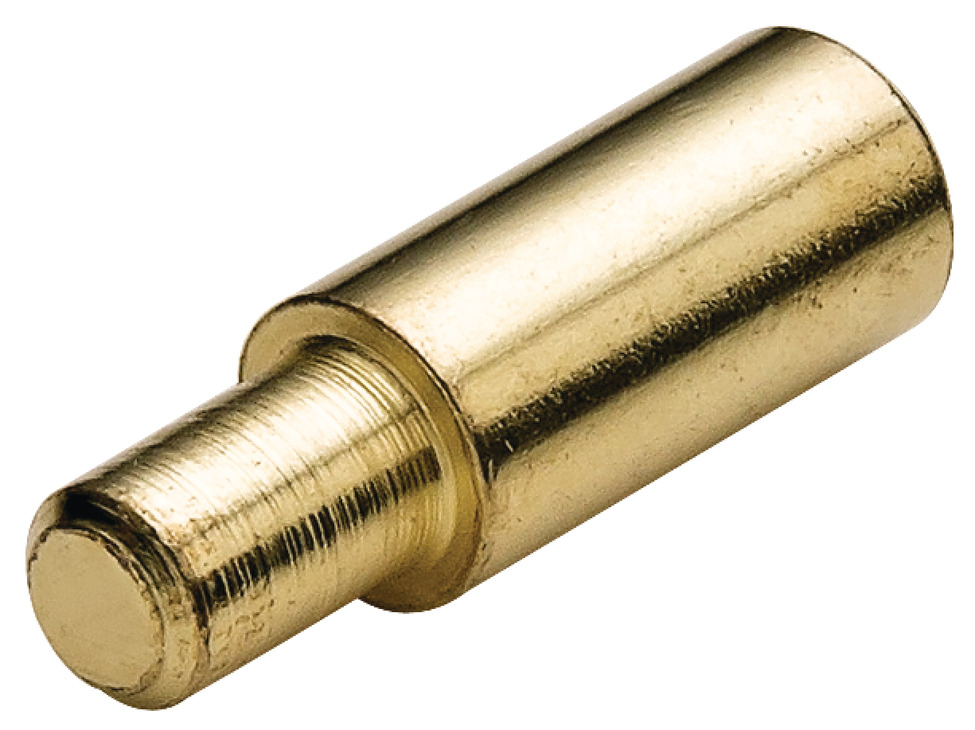

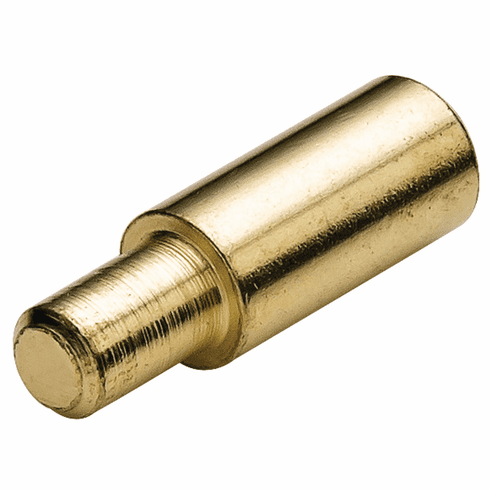

Hafele 282.38.502 Shelf Support, For wooden shelves, steel for plug fitting into drill hole dia. 5 mm, Brass-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 282.38.502

  Product Title: Shelf Support, Ø5 mm, For wooden shelves, steel, for plug fitting into drill hole ? 5 mm, Brass-plated

  Category: Shelf Support, Ø5 mm, For wooden shelves, steel, for plug fitting into drill hole ? 5 mm

  Item Details …

  - Area of application : for wooden shelves

  - Installation : For insert fitting

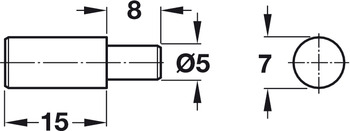

  - For drill hole Ø : 5.00 mm

  - Length : 23.00 mm

  - Support size : 3.50 mm

  - Pin length : 8.00 mm

  - Material : Steel

  - Load bearing capacity with 4 shelf supports : 80.00 kg

  - Load bearing capacity : 175 lbs

  - Note on load bearing capacity : Load bearing capacity specified in accordance with DIN EN 1727:1998-06

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.112



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.68-11.76.pdf

  Hafele 282.38.502, 282-38-502, 28238502, 282.38


  Specifications/Hafele Catalog - Page# FC11.78: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
