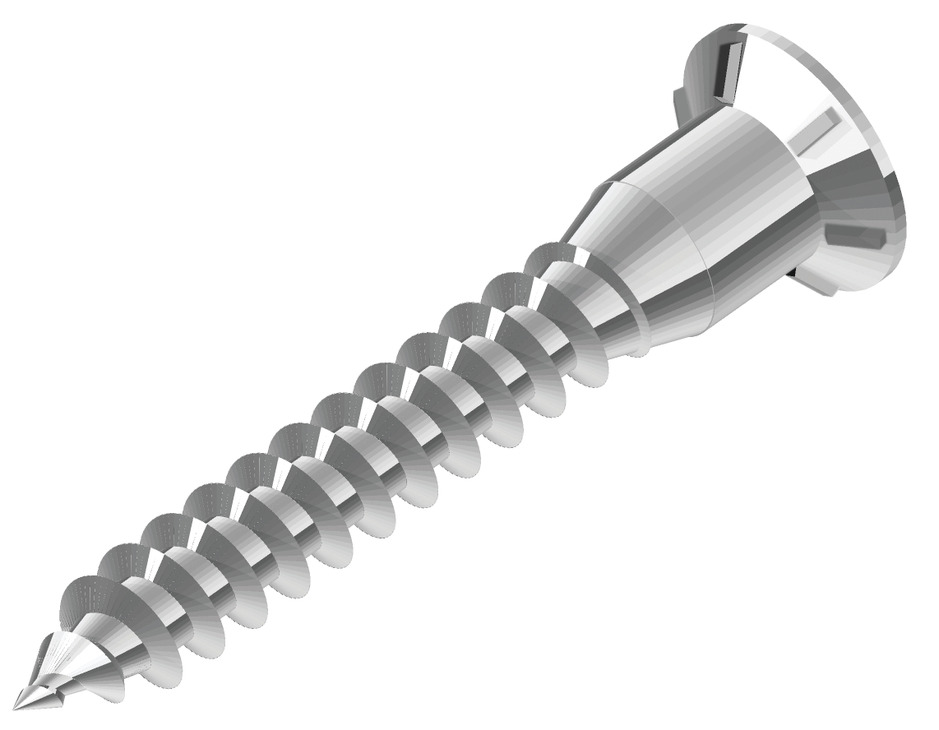

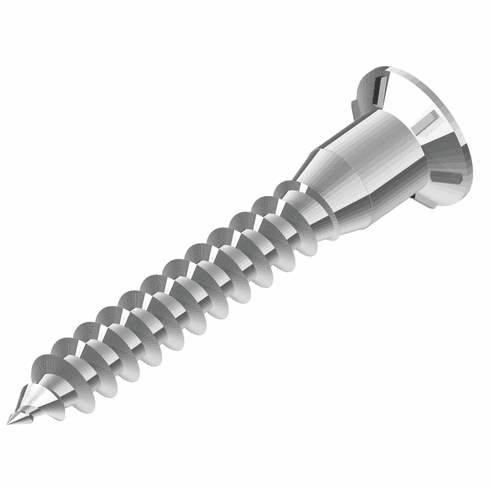

Hafele 264.40.191 Self-Countersinking Connector, Confirmat Pozi drive size 2
Product Information
Description
Manufacturer: Hafele
Item: 264.40.191
Product Title: Self-Countersinking Connector, Confirmat, Pozi drive size 2
Category: Self-Countersinking Connector, Confirmat,
Item Details
- Long shank, deep-cut thread ensures accurate, close-fitting joints between panels
- High pull-out resistance and strength at the corners

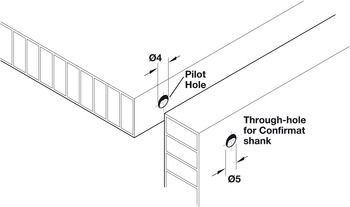

- Only a single drilling operation for side panels and shelves
- Consistently secure joints are assured even with repeated assembly and disassembly
- Cover caps are not available

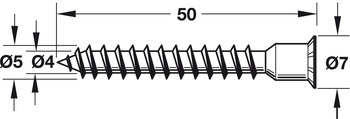

- Thread : 5.00 mm
- Color/finish : Zinc plated
- Area of application : Long shank, deep-cut thread ensures accurate, close-fitting joints between panels
- Material : Steel
- Shaft : 5.00 mm
- Supplied with:
- 1000 pcsData Sheet
