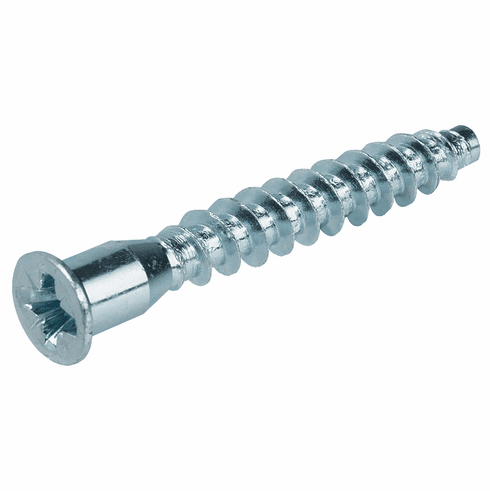

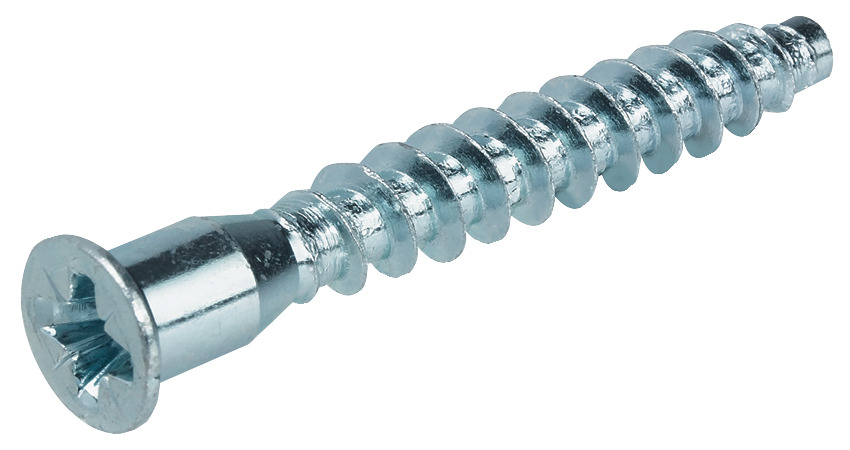

Hafele 264.42.133 Countersunk Connector, Confirmat, countersunk head, for drill hole dia. 5 mm, PZ3 Steel, Bronzed, length: 50 mm, thread dia.: 7 mm
Product Information
Description
Hafele 264.42.133 Countersunk Connector, Hafele Confirmat, countersunk head, for drill hole dia. 5 mm, PZ3

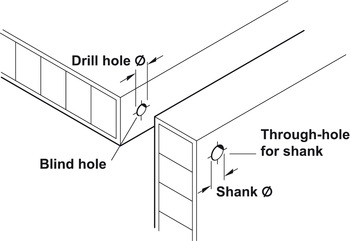

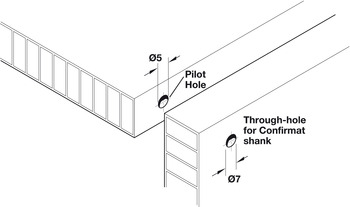

Steel, Bronzed, length: 50 mm, thread dia.: 7 mmShaft diameter : 7 mm Head diameter : 10 mm Drill hole diameter : 5 mm Drive : PZ3 cross slot Material : Steel Supplied with : 1000 pcs
Optional items:
Cover Cap, Press-Fit in Confirmat Head
Cover caps made from plasticSpecifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.161-11.162.pdfHafele 264.42.133, 264-42-133, 26442133, 264.42 Specifications/Hafele Catalog - Page# FC11.161:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
Return to: All Hafele CatalogsDownload
Adobe PDF Reader
Installation Manuals
Click: :TCH_Furniture_Cabinetry_Hardw
Cannot find your product? click: Help!. Our product experts will assist you.
Quick Metric Conversions: 25mm = 1 inch (approx), 2.5cm = 1 inch (approx), 96mm = 3.75 inches
