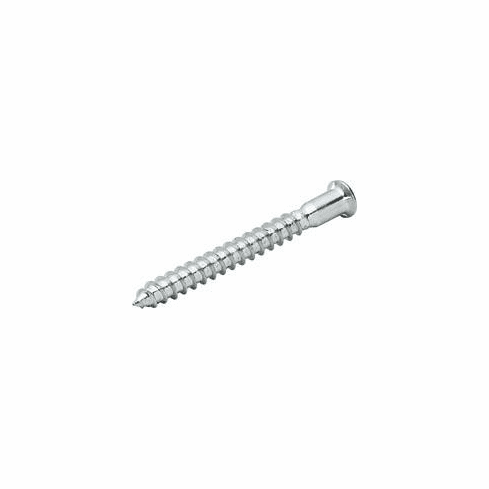

Hafele 264.39.191 Self-Countersinking Connector, Confirmat Hex socket head 3 mm
Product Information
Description
Manufacturer: Hafele
Item: 264.39.191
Product Title: Self-Countersinking Connector, Confirmat, Hex socket head 3 mm
Category: Self-Countersinking Connector, Confirmat,
Item Details …
- Long shank, deep-cut thread ensures accurate, close-fitting joints between panels
- High pull-out resistance and strength at the corners

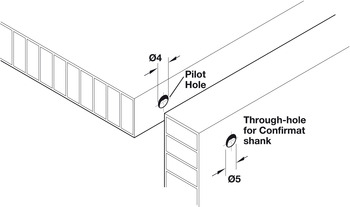

- Only a single drilling operation for side panels and shelves
- Consistently secure joints are assured even with repeated assembly and disassembly

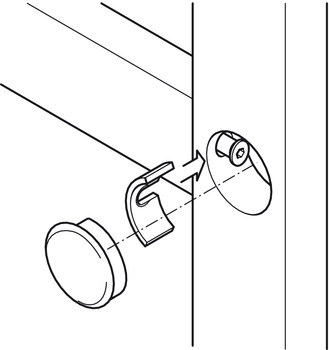

- Cover caps are not available

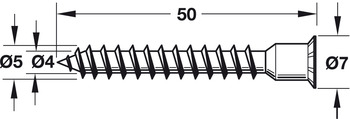

- Thread Ø : 5.00 mm
- Color/finish : Zinc plated
- Area of application : Long shank, deep-cut thread ensures accurate, close-fitting joints between panels
- Material : Steel
- Shaft Ø : 5.00 mm
- Supplied with:
- 1000 pcsData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.161-11.162.pdfHafele 264.39.191, 264-39-191, 26439191, 264.39
Specifications/Hafele Catalog - Page# FC11.160:
Click to: Show catalog here ...
Click to: Show catalog in a new page.
Return to: Hafele Connectors & Shelf Supports Catalog
Return to: All Hafele CatalogsDownload
