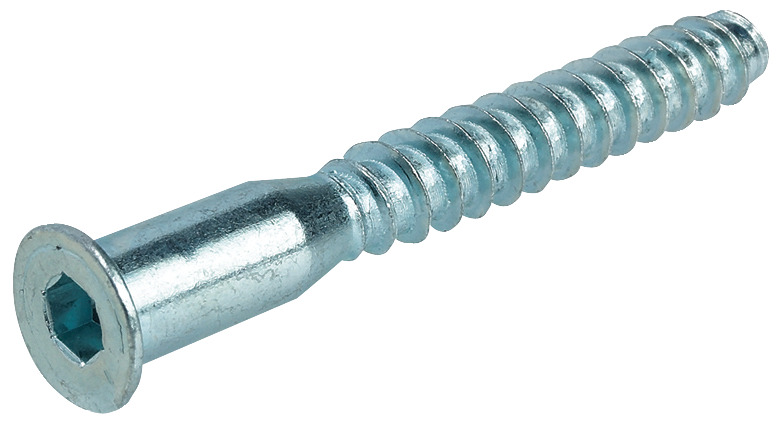

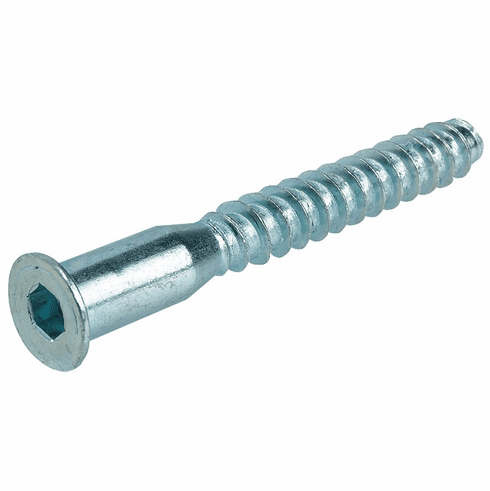

Hafele 264.39.092 Countersunk Connector, Confirmat, Hex Socket, 3 mm Steel, with hexagon socket SW3, Length: 40 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 264.39.092

  Product Title: Countersunk Connector, Confirmat, Hex Socket, 3 mm, Steel, with hexagon socket SW3, Length: 40 mm

  Category: Countersunk Connector, Confirmat, Hex Socket, 3 mm, Steel, with hexagon socket SW3

  Item Details …

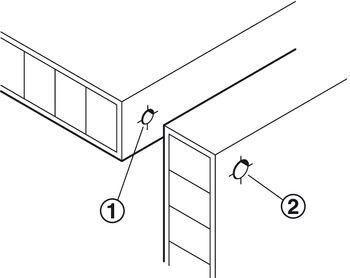

  - Only a single drilling operation for side panels and shelves

  - Consistently secure joints are assured even with repeated assembly and disassembly

  - Long shank, deep-cut thread ensures accurate, close-fitting joints between panels

  - High pull-out resistance and strength at the corners

  - Only a single drilling operation for side panels and shelves

  - Consistently secure joints are assured even with repeated assembly and disassembly

  - Drive : Hexagon socket SW3

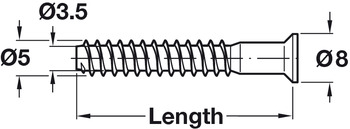

  - Thread Ø : 5.00 mm

  - Color/finish : Zinc plated

  - Area of application : Long shank, deep-cut thread ensures accurate, close-fitting joints between panels

  - Material : Steel

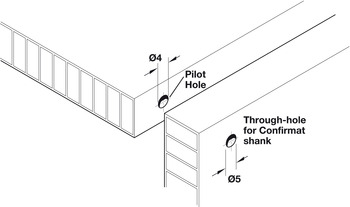

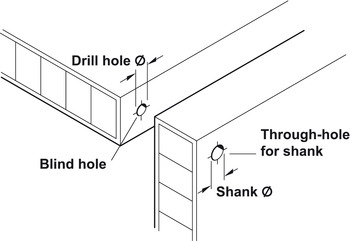

  - For drill hole Ø : 4.00 mm

  - Shaft Ø : 5.00 mm

  - Type of head : Countersunk head

  - Screw tip version : with drill point

  - Version : With tip

  - Order reference

  - Other finishes available on request.

  - Supplied with:

  - 1000 pcs
