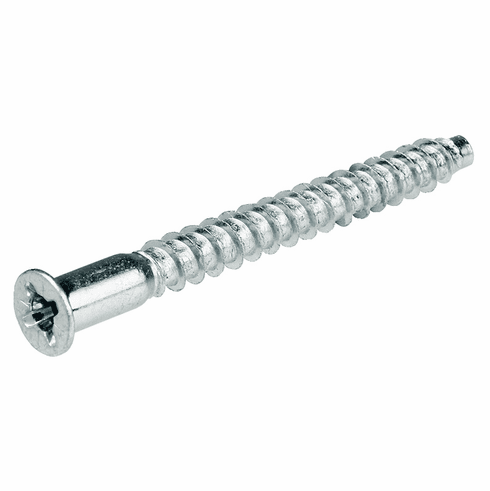

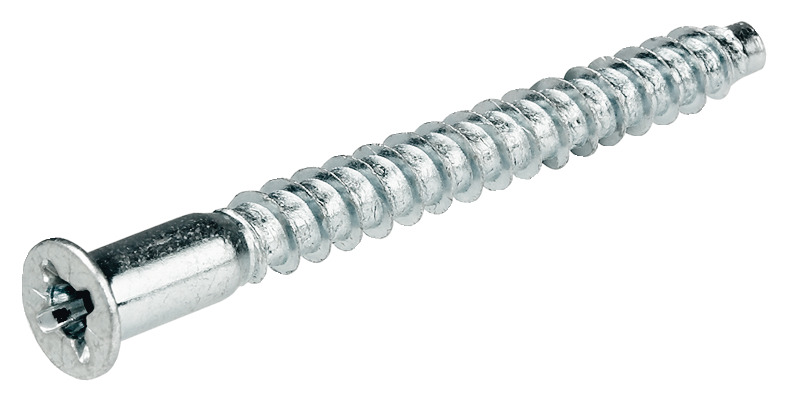

Hafele 264.37.196 Countersunk Connector, Confirmat, Pozi Drive, Size 2 Steel, Length: 50 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 264.37.196

  Product Title: Countersunk Connector, Confirmat, Pozi Drive, Size 2, Steel, Length: 50 mm

  Category: Countersunk Connector, Confirmat, Pozi Drive, Size 2, Steel

  Item Details …

  - Long shank, deep-cut thread ensures accurate, close-fitting joints between panels

  - High pull-out resistance and strength at the corners

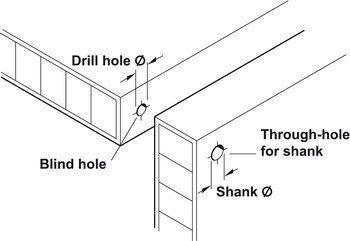

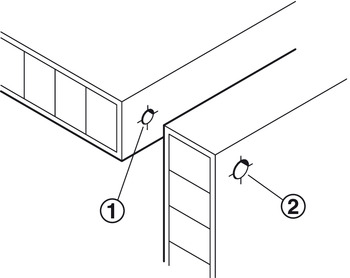

  - Only a single drilling operation for side panels and shelves

  - Consistently secure joints are assured even with repeated assembly and disassembly

  - Drive : PZ2 cross slot

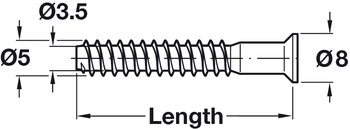

  - Thread Ø : 5.00 mm

  - Central hole Ø : 2.50 mm

  - Color/finish : Zinc plated

  - Material : Steel

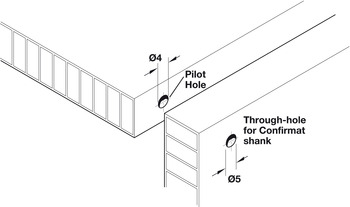

  - For drill hole Ø : 4.00 mm

  - Shaft Ø : 5.00 mm

  - Type of head : Countersunk head

  - Order reference

  - Other finishes available on request.

  - Supplied with:

  - 1000 pcs
