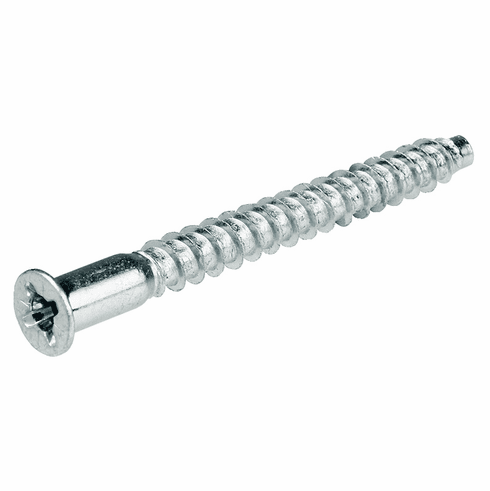

Hafele 264.37.098 Countersunk Connector, Confirmat, Pozi Drive, Size 2 Steel, Length: 38 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 264.37.098

  Product Title: Countersunk Connector, Confirmat, Pozi Drive, Size 2, Steel, Length: 38 mm

  Category: Countersunk Connector, Confirmat, Pozi Drive, Size 2, Steel

  Item Details …

  - Long shank, deep-cut thread ensures accurate, close-fitting joints between panels

  - High pull-out resistance and strength at the corners

  - Only a single drilling operation for side panels and shelves

  - Consistently secure joints are assured even with repeated assembly and disassembly

  - Drive : PZ2 cross slot

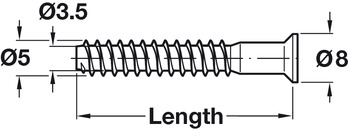

  - Thread Ø : 5.00 mm

  - Central hole Ø : 2.50 mm

  - Color/finish : Zinc plated

  - Material : Steel

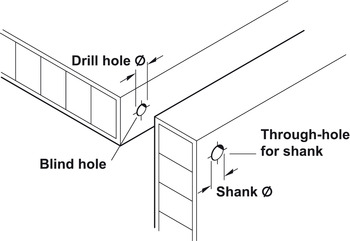

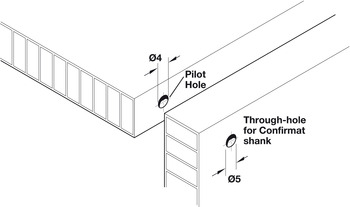

  - For drill hole Ø : 4.00 mm

  - Shaft Ø : 5.00 mm

  - Type of head : Countersunk head

  - Order reference

  - Other finishes available on request.

  - Supplied with:

  - 1000 pcs

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.44



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.161-11.162.pdf

  Hafele 264.37.098, 264-37-098, 26437098, 264.37


  Specifications/Hafele Catalog - Page# FC11.160: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs

  Download Adobe PDF Reader





• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Optional Accessories:



  • Trim Cap, Press-Fit in Confirmat Head, For screws with central hole 3.0 mm
