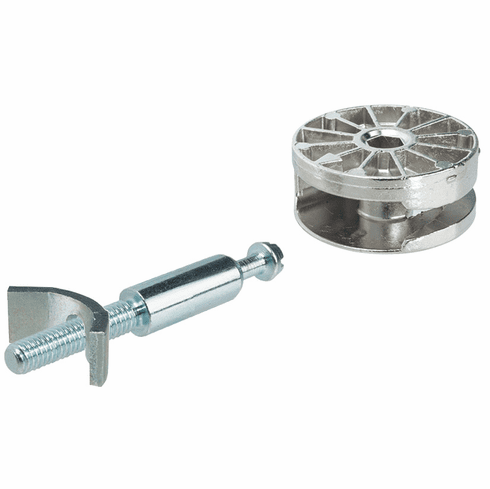

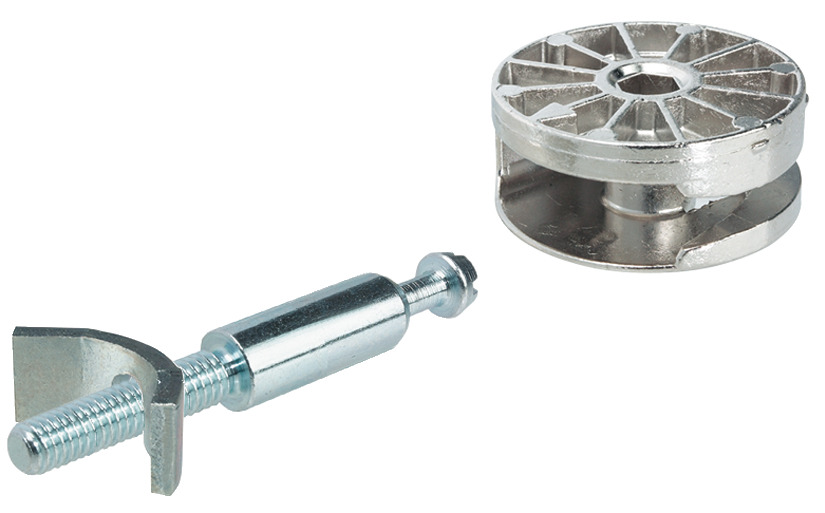

Hafele 262.87.041 Countertop/Work Surface Connector, Maxifix 35 Bolt length BL: 68.5 mm, drilling dimension B: 32-41 mm
Product Information
Description
Hafele 262.87.041 Countertop/Work Surface Connector, Maxifix 35

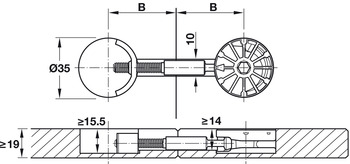

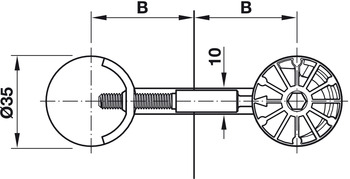

Bolt length BL: 68.5 mm, drilling dimension B: 32-41 mmFor wood thickness : Min. 19 mm Application : For two butting or mitre cut worktop sections Features : Bolt and pressure plate are pre-mounted Installation : For recess mounting, with rapid-action clamping Drive : SW6 hexagon socket Material : Housing: Zinc alloy
bolt and pressure plate: SteelFinish : Housing: Bright

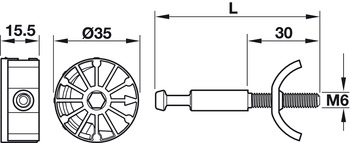

Bolt and pressure plate: GalvanizedSupplied with : 1 Maxifix 35 connector housing
1 connecting bolt
1 pressure plate
Specifications
For detailed PDF specifications, click:
Hafele Catalog Page: selection_11.54-11.54.pdfHafele 262.87.041, 262-87-041, 26287041, 262.87 Specifications/Hafele Catalog - Page# FC11.57:
