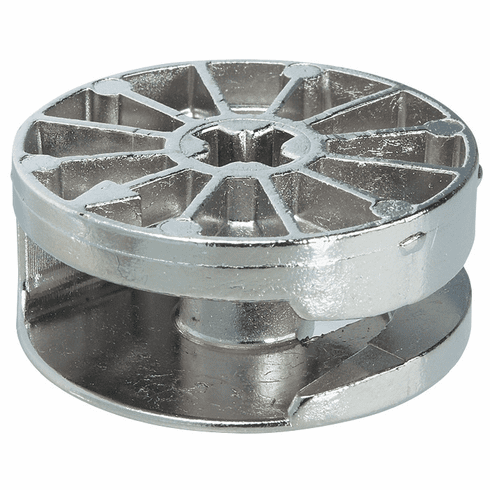

Hafele 262.87.013 Connector Housing, Maxifix System, Phillips #3 With cross slot, Unfinished

Product Information

• Description

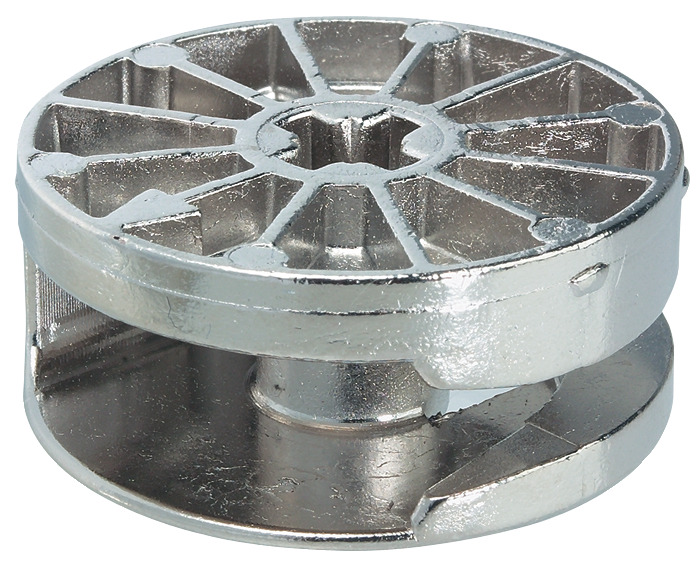

  Hafele 262.87.013 Connector Housing, Maxifix® System, Phillips #3
  With cross slot, Unfinished



  A : 9.5 mm

  Material : Zinc alloy

  Diameter : 35 mm

  For wood thickness : From 19 mm

  Bolt hole : dia. 9 mm

  Drilling dim. B : Distance from centre of Maxifix housing to front edge of cross element (35 or 55 mm), depending on choice of connecting bolt

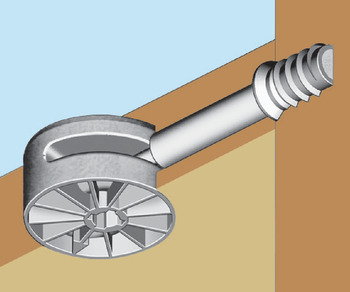

  Application : For extremely stable connections that are subjected to heavy loads

  Drive : Phillips #3

  Depth : 15.2 mm

  A : 9.5 mm

  Note :

  Drilling distance depends on bolt used

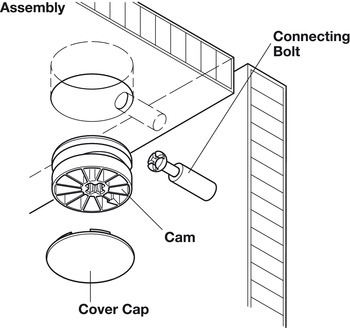

  Optional items:
  Trim cap
  Connecting Bolt Maxifix® System, for Drill Hole 5 mm
  Connecting Bolt Maxifix® System, with M6 or M8 Thread


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.37-11.37.pdf

  Hafele 262.87.013, 262-87-013, 26287013, 262.87


  Specifications/Hafele Catalog - Page# FC11.40: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
