Hafele 262.87.042 Countertop/Work Surface Connector, Maxifix 35 Bolt length BL: 154.5 mm, drilling dimension B: 75-84 mm

Product Information

• Description

  Hafele 262.87.042 Countertop/Work Surface Connector, Maxifix 35
  Bolt length BL: 154.5 mm, drilling dimension B: 75-84 mm

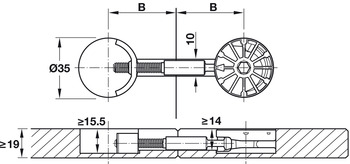

  For wood thickness : Min. 19 mm

  Application : For two butting or mitre cut worktop sections

  Features : Bolt and pressure plate are pre-mounted

  Installation : For recess mounting, with rapid-action clamping

  Drive : SW6 hexagon socket

  Material : Housing: Zinc alloy
  bolt and pressure plate: Steel

  Finish : Housing: Bright
  Bolt and pressure plate: Galvanized

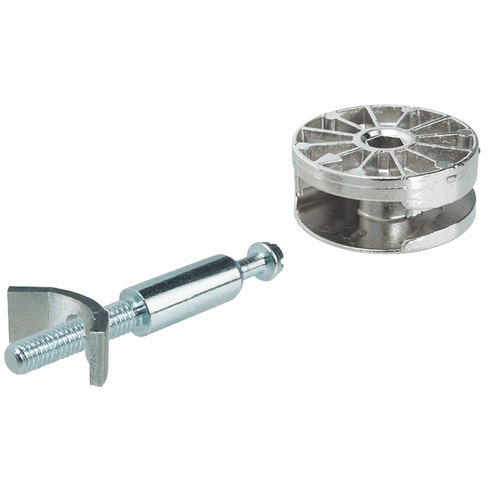

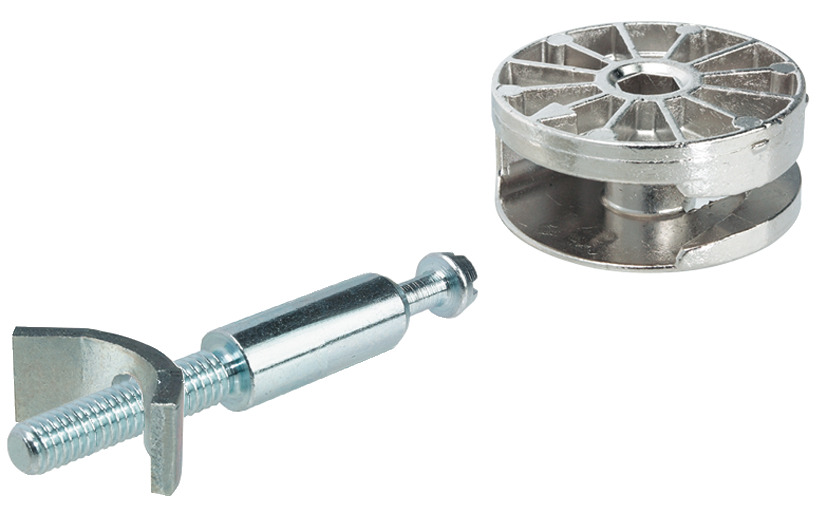

  Supplied with :

  1 Maxifix 35 connector housing

  1 connecting bolt

  1 pressure plate





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.54-11.54.pdf

  Hafele 262.87.042, 262-87-042, 26287042, 262.87
