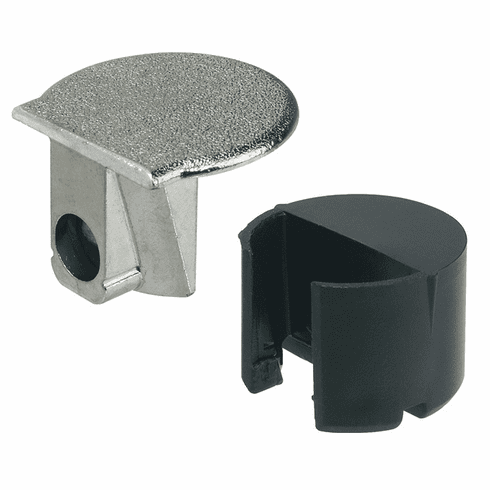

Hafele 262.36.510 RTA and Shelf Connector, Rasant-Tab for drill hole 3 or 5 mm, For wood thicknesses: from 16+ mm, nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.36.510

  Product Title: RTA and Shelf Connector, Rasant-Tab, for drill hole Diameter: 5 mm, For wood thicknesses: from 16+ mm, nickel-plated

  Category: ,

  Item Details …

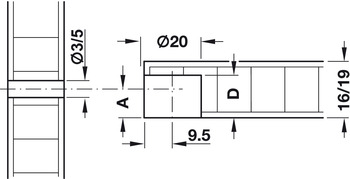

  - Same appearance and drilling pattern as Rafix 20 without pin.

  - The angled contact surfaces of the connector components allow shelves to be attached to the side panel with a positive-fitting connection.

  - Only the base plate of the support is visible after installation.

  - For wood thickness :

  - Drilling depth :

  - Color/finish : Nickel plated, Nickel-plated

  - Installation : for screwing into drill hole Diameter: 3 or 5 mm

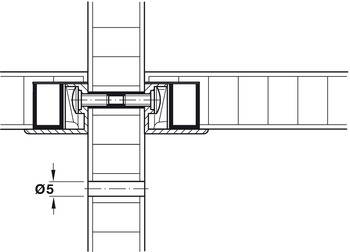

  - Area of application : Use M4 screw, sleeves for center panel application

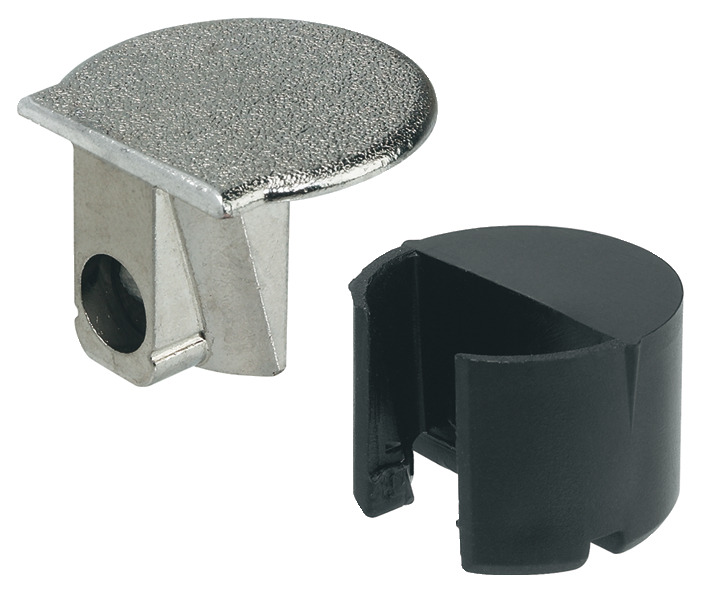

  - Material : Support: Zinc alloyBoss insert: Plastic

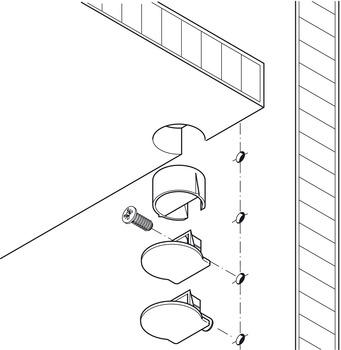

  - Installation description : Support for screw fixing, boss insert for flush press-fitting into drill hole

  - Supplied with:

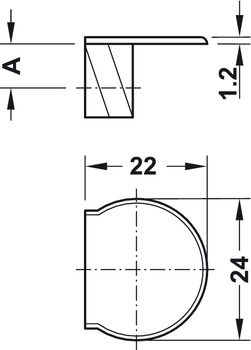

  - 1 support

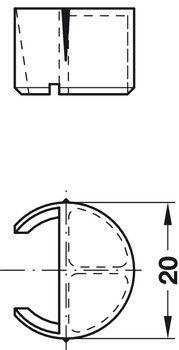

  - 1 boss insert


  Additional Information …

  Use M4 screw, sleeves for center panel application

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data



• Specifications

  Hafele 262.36.510 Rasant-Tab Screw-In Zn.Nip.16Mm (1.6X0.2X0.5 Cm)


  Product Specifications:
  Contact us for more information.
