Hafele 262.36.073 Cup Insert, Rasant-Tab For wood thickness: from 19 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 262.36.073

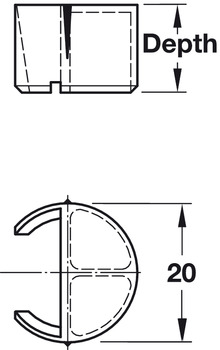

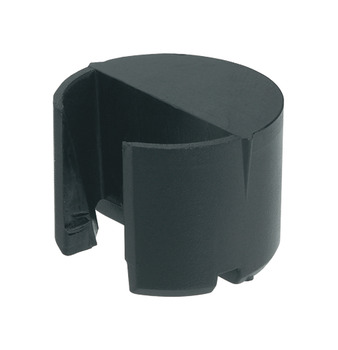

  Product Title: Cup Insert, Rasant-Tab, For wood thickness from 19 mm, Plastic black

  Category: Cup Insert, Rasant-Tab, For wood thickness from 19 mm, Plastic black

  Item Details …

  - Same appearance and drilling pattern as Rafix 20 without pin.

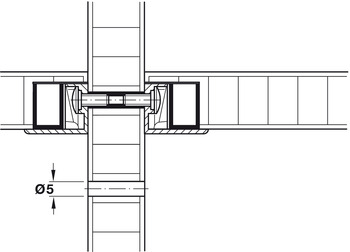

  - The angled contact surfaces of the connector components allow shelves to be attached to the side panel with a positive-fitting connection.

  - Only the base plate of the support is visible after installation.

  - Color/finish : Black

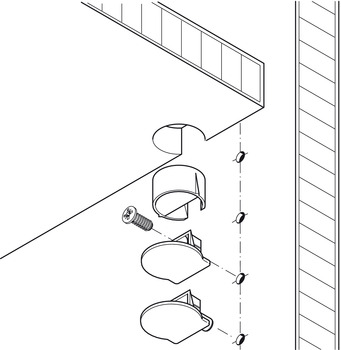

  - Installation : Support for plug fitting or screw fixingboss insert for flush press fitting into drill hole

  - Material : Plastic

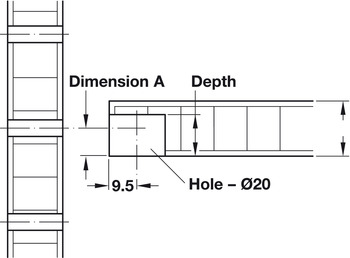

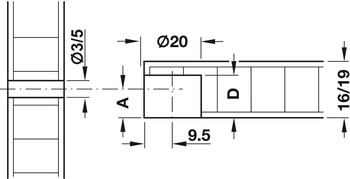

  - Drill hole Ø : 20.00 mm

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 11.50
