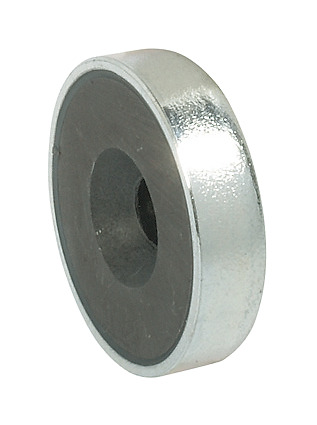

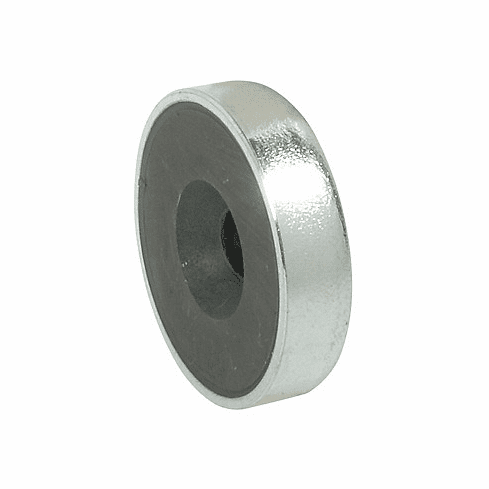

Hafele 246.86.025 Magnetic Catch, 3.6 kg Pull, For metal cabinets

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.86.025

  Product Title: Magnetic Catch, 3.6 kg Pull, For metal cabinets, housing, pull: 3.6 kg

  Category: Magnetic Catch, 3.6 kg Pull, For metal cabinets, housing, pull: 3.6 kg

  Item Details …

  - Use #9 flat head screw

  - Pull Force (kg) : 3.6 kg

  - Color/finish : zinc plated

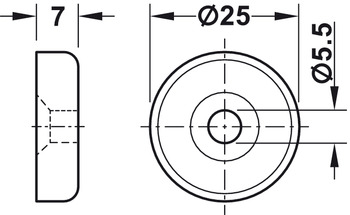

  - Version : With inside mounting hole Diameter:5 mm Low-profile magnet

  - Area of application : For metal cabinets

  - Material : Steel

  - Installation : For screw fixing with M5 countersunk head screw

  - Order reference

  - Please order counterpiece (246.86.901) separately.
