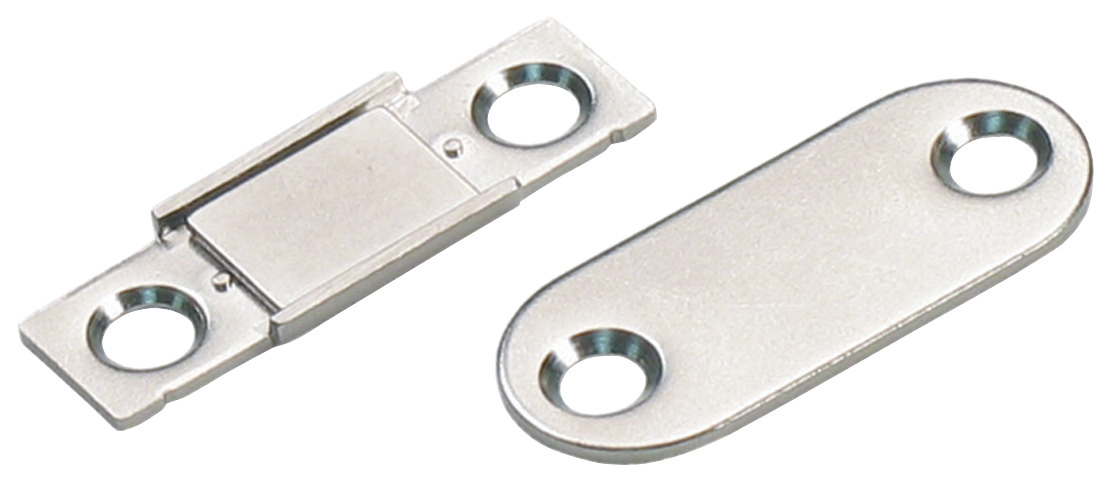

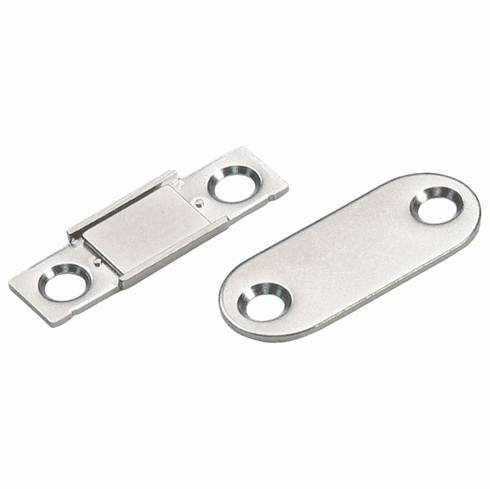

Hafele 246.53.650 Magnetic Catch, Ultra Thin, 2.7 kg Pull Nickel plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.53.650

  Product Title: Magnetic Catch, Ultra Thin, 2.7 kg Pull, Steel/nickel-plated

  Category: Magnetic Catch, Ultra Thin, 2.7 kg Pull,

  Item Details …

  - To avoid damage, counter plate should not hit magnet

  - Screw heads should not protrude above the base plate

  - Ultra thin catch ideal for tight spaces

  - Hermetically sealed for corrosion resistance

  - Strong magnetic force

  - No metal to metal contact

  - Pull Force (kg) : 2.7 kg

  - Material : Magnet: NeodymiumBase/yoke: Steel

  - Supplied with:

  - Strike plate

  - 4 pcs. Wood screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.120



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.84-11.89.pdf

  Hafele 246.53.650, 246-53-650, 24653650, 246.53


  Specifications/Hafele Catalog - Page# FC11.95: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
