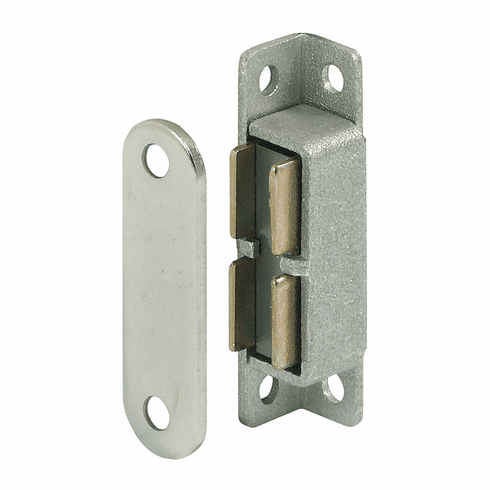

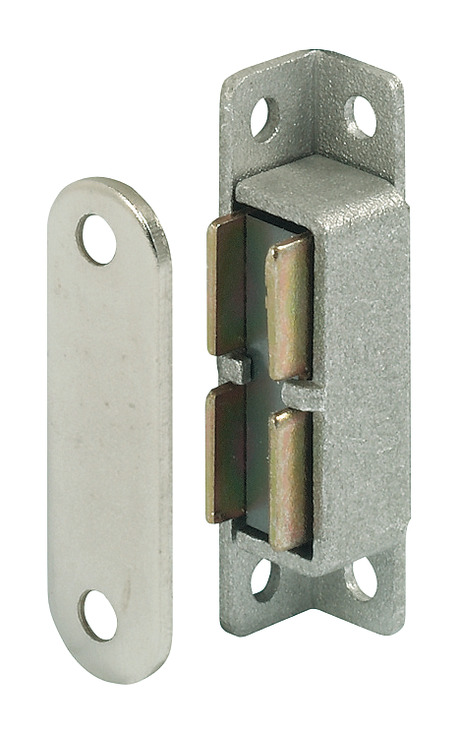

Hafele 246.92.000 Magnetic Catch, 5 kg Pull, Heat Resistant Heat resistant up to 300 degree C

Product Information

• Description

  Manufacturer: Hafele
  Item: 246.92.000

  Product Title: Magnetic Catch, 5 kg Pull, Heat Resistant, Heat resistant up to 300 °C

  Category: Magnetic Catch, 5 kg Pull, Heat Resistant, Heat resistant up to 300 °C

  Item Details …

  - Use #5 flat head screw for strike plate, #5 pan head screw for catch

  - Pull Force (kg) : 5 kg

  - Color/finish : silver coloured anodized

  - Version : Metal case provides heat-resistance to 300° C.

  - Area of application : Heat resistant up to 300 °C

  - Material : Catch: AluminumStrike: Steel

  - Installation : Use #4 flat head screw for strike plate, #4 pan head screw for catch


  Additional Information …

  Holding power is diminished by 1% per 5° C (+) increase in temperature. Cooling restores the magnet’s holding power to its original level. No strike is necessary with steel doors or lids.
