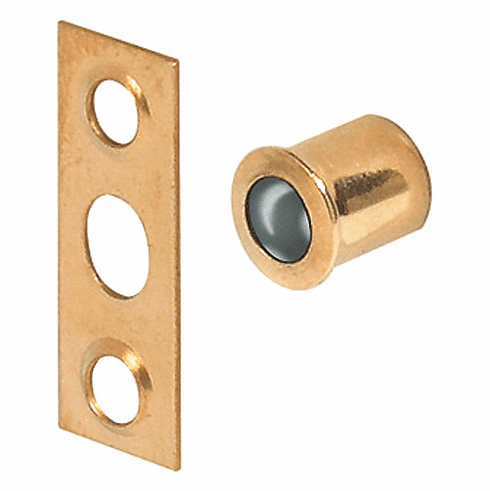

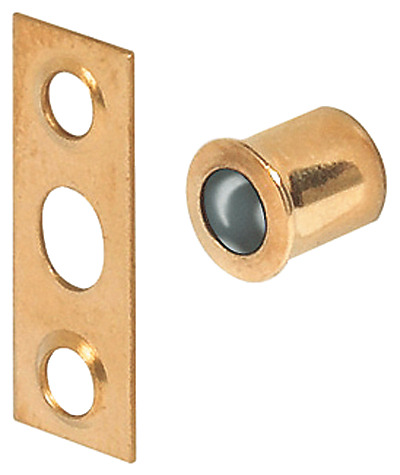

Hafele 241.80.505 Ball Catch, with Strike, Press-Fit Depth: 7.5 mm, 6.5 mm

Product Information

• Description

  Manufacturer: Hafele
  Item: 241.80.505

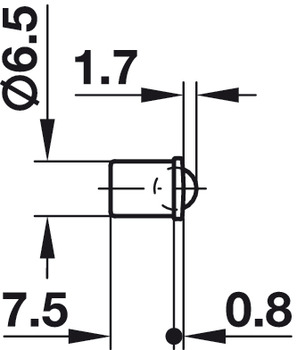

  Product Title: Ball Catch, with Strike, Press-Fit, Depth: 7.5 mm, Diameter:6.5 mm

  Category: Ball Catch, with Strike, Press-Fit,

  Item Details …

  - Use #4 flat head screw

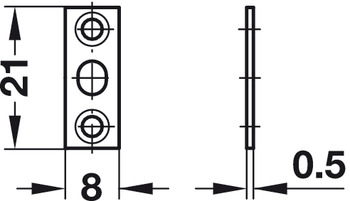

  - Color/finish : Catch and striking plate: brass plated

  - Material : Steel

  - Installation : Press-fit

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.131



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_11.100-11.99.pdf

  Hafele 241.80.505, 241-80-505, 24180505, 241.80


  Specifications/Hafele Catalog - Page# FC11.106: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
