Hafele 233.47.041 Glass Door Cam Lock, for Double Doors Keyed Alike (SG 1)

Product Information

• Description

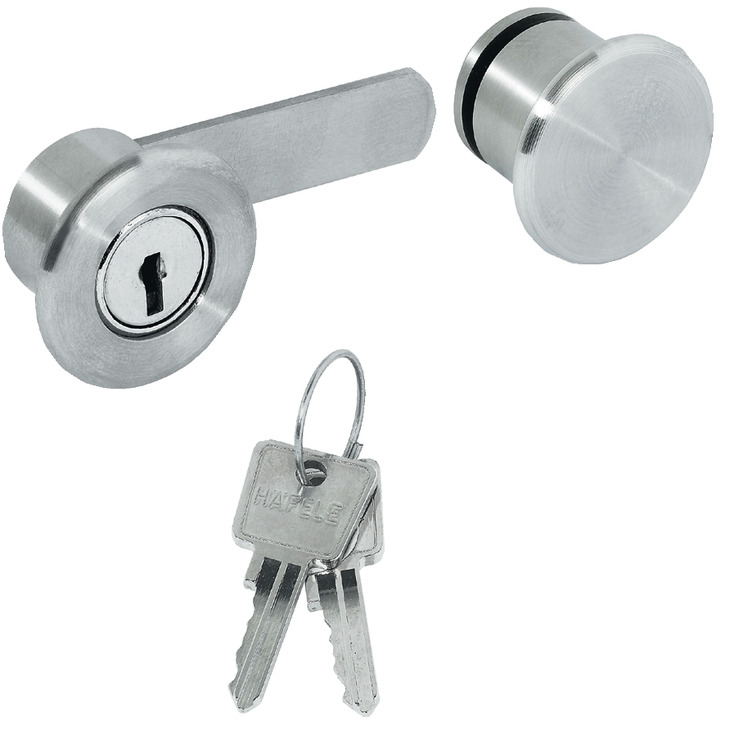

  Hafele 233.47.041 Glass Door Cam Lock, for Double Doors
  Keyed Alike (SG 1)



  For glass thickness : Max. (1/2") 12 mm

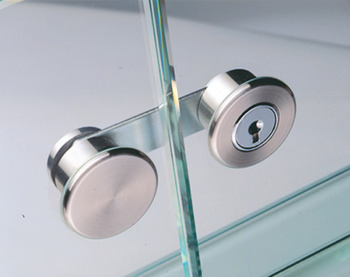

  Application : For double doors

  Installation : UV glass adhesive bonds

  Material : Stainless steel

  Finish : Matt



  Supplied with :

  1 glass door cam lock

  2 keys

  1 set of installation instructions





• Specifications

  Hafele 233.47.041, 233-47-041, 23347041, 233.47


  Specifications/Hafele Catalog - Page# FC11.175: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Connectors & Shelf Supports Catalog Return to: All Hafele Catalogs
