Hafele 230.36.600 Hook Bolt Mortise Lock, Backset 22 mm For combination with Symo cylinder removable core, Nickel-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 230.36.600

  Product Title: Hook Bolt Mortise Lock, Backset 22 mm, For combination with Symo cylinder removable core, Nickel-plated

  Category: Hook Bolt Mortise Lock, Backset 22 mm, For combination with Symo cylinder removable core, Nickel-plated

  Item Details …

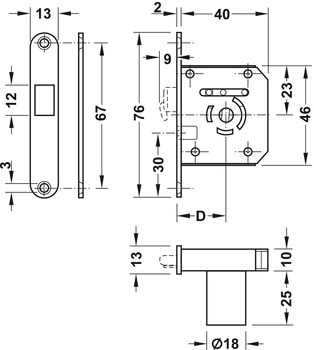

  - Backset (mm) : 22.00 mm

  - Mounting : Recess mount and screw-mount

  - Backset D : 22.00 mm

  - Area of application : For cylinder cores that are inserted from the front on site

  - Material : Zinc alloy

  - Color/finish : Nickel plated

  - Cylinder shape : prepared for round cylinder

  - Cylinder housing length : 24.00 mm

  - Installation : Recess mount and screw-mount

  - with key : No

  - Supplied with:

  - Strike plate

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Furniture_Cabinetry_Hardware_2022|Page 10.28



• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.28-10.28.pdf

  Hafele 230.36.600, 230-36-600, 23036600, 230.36
