Hafele 230.35.201 Deadbolt Drawer Lock Keyed Cabinet Locks - SC Series, Keyed alike

Product Information

• Description

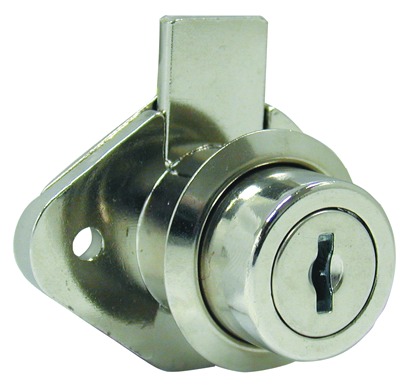

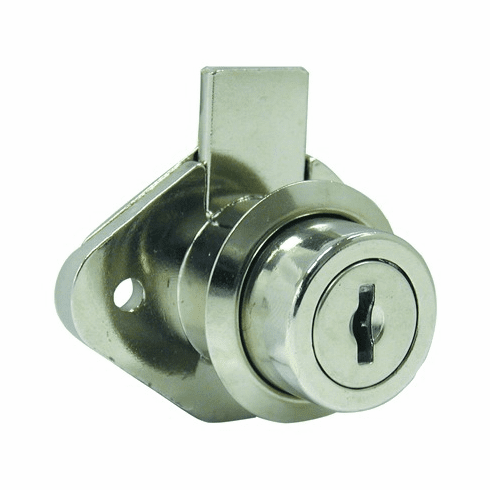

  Hafele 230.35.201 Deadbolt Drawer Lock
  Keyed Cabinet Locks - SC Series, Keyed alike



  Application : For wood drawers

  Features : 5 Plate levers

  Key travel : 180° key rotation

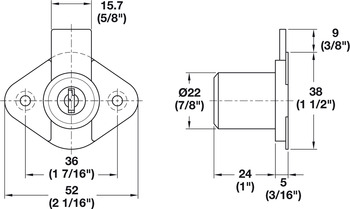

  For wood thickness : (3/4") 19 mm

  Bolt throw : (3/8") 9 mm

  Material : Zinc alloy

  Finish : Chrome-plated



  Supplied with :

  2 keys

  Rosette





• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.48-10.48.pdf

  Hafele 230.35.201, 230-35-201, 23035201, 230.35


  Specifications/Hafele Catalog - Page# FC10.46: Click to: Show catalog here ... Click to: Show catalog in a new page. Return to: Hafele Lockers & Locking Systems Catalog Return to: All Hafele Catalogs
