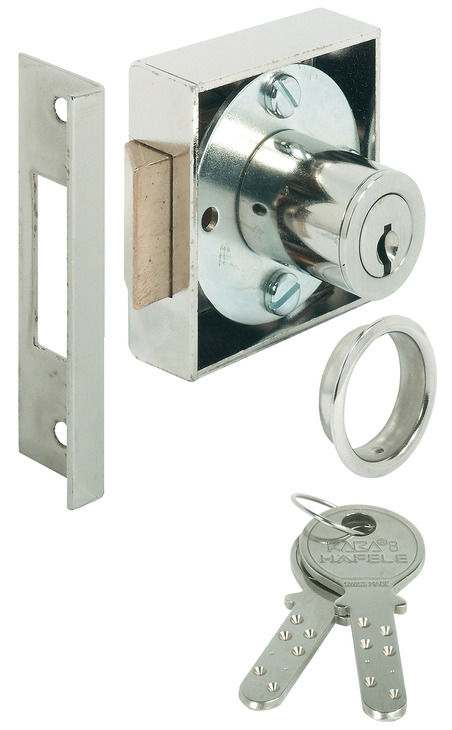

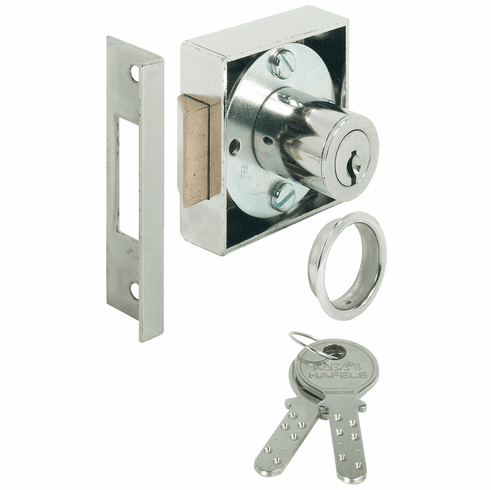

Hafele 231.06.229 Spring Bolt/Slam Lock, 22 mm KABA Cylinder, 8 Pin Keyed different

Product Information

• Description

  Hafele 231.06.229 Spring Bolt/Slam Lock, 22 mm KABA Cylinder, 8 Pin
  Keyed different



  Key change : Keyed to differ

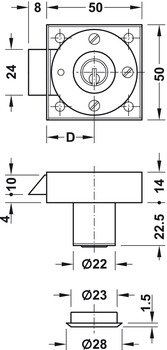

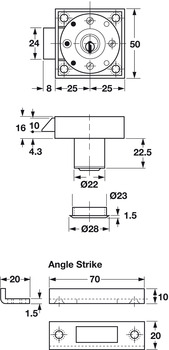

  Cylinder length : 22.5 mm

  Cylinder diameter : 22 mm

  Backset : 25 mm

  Installation : For screw fixing (Flat head #8)

  Mounting : Right hand (can be adapted for left/drawer use)

  Material : Case and strike: Steel
  Bolt: Brass

  Finish : Nickel-plated



  Optional items:
  Flat Countersunk Head with Uni-Drive, Zinc-Plated
  Flat Countersunk Head, #2 Square Drive
  Flat Countersunk Head, #2 Square Drive, with Nibs
  Flat Countersunk Head, #2 Phillips Drive
  Flat Countersunk Head, #2 Phillips, with Nibs


• Specifications

  For detailed PDF specifications, click:
  Hafele Catalog Page: selection_10.46-10.46.pdf

  Hafele 231.06.229, 231-06-229, 23106229, 231.06
