Hafele 946.21.100 Bar Bolt Lock, Hawa Doorfix

Product Information

• Description

  Manufacturer: Hafele
  Item: 946.21.100

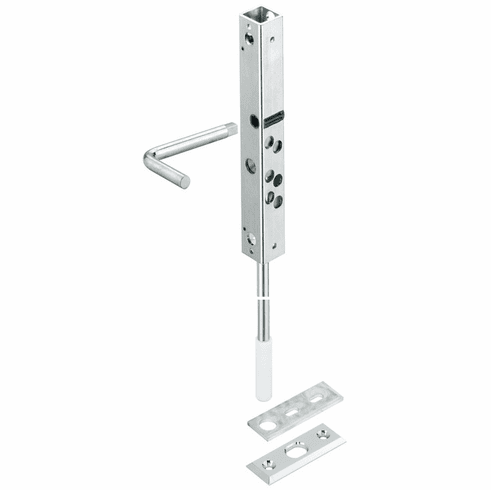

  Product Title: Bar Bolt Lock, Hawa Doorfix, For Wood Sliding Doors

  Category: Bar Bolt Lock, Hawa Doorfix, For Wood Sliding Doors

  Item Details …

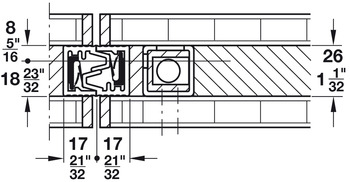

  - Square or hexagonal nut: 7 or 8 mm (9/32” or 5/16”)

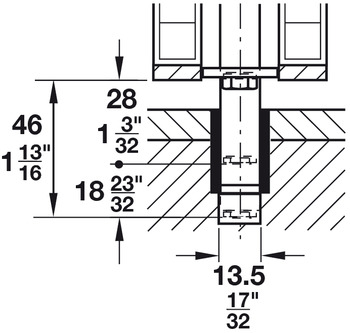

  - Total throw of the push bar: 46 mm (1 13/16”)

  - 2 turn: 1. Step: 28 mm (1 3/32”) 2. Step: 18 mm (23/32”)

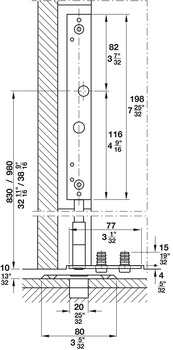

  - Operating height: 830 or 960 mm (32 11/16” or 38 9/16”)

  - To lock, guide and secure partition walls

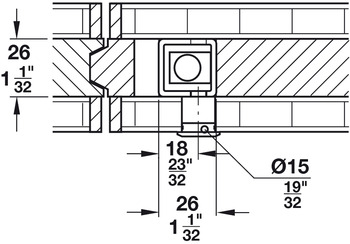

  - Operation with square or hexagonal key from the front edge or the door section

  - Push bar can be shortened

  - Color/finish : Zinc plated, Galvanized

  - Travel : 46.00 mm

  - Travel : 2 turn - 1. step: 1 7/64", 2. step: 45/64"

  - Material : Steel

  - Door weight max. : 176 lbs.

  - Area of application : For locking, guiding and holding position of folding and concertina walls

  - Version : Push bar can be shortened

  - Type of Opening : with square socket key or hex key from front edge or from door surface


  Additional Information …

  Lift: 2-turn extending rod 46 mm, first step 28 mm, second step 18 mmLever follower: 7 mm square or 8 mm hexagonal

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  TCH_Architectural_Hardware_2022|Page 1.201

  TCH_Architectural_Hardware_2022|Page 1.235



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.164-1.165.pdf

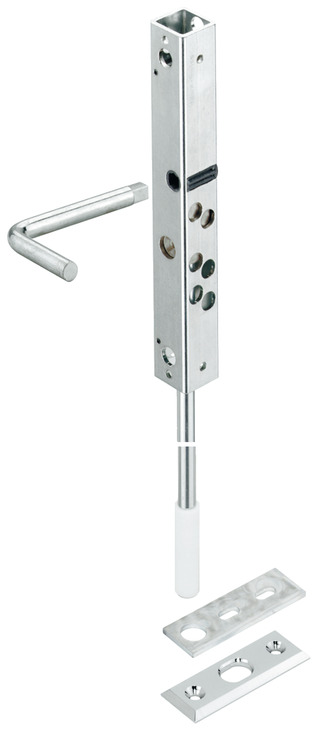

  Hafele 946.21.100 HAWA Doorfix Bar Bolt Lock
