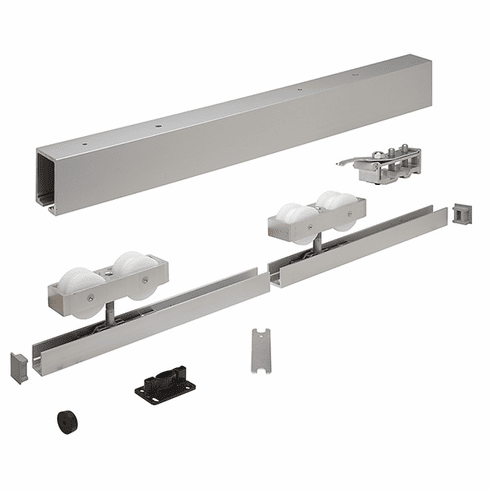

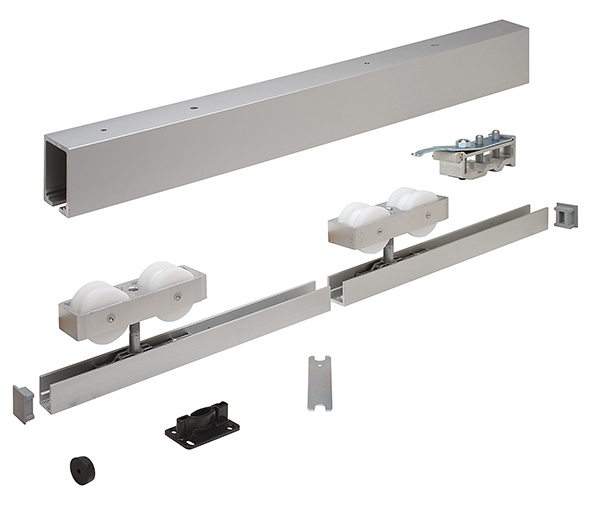

Hafele 942.56.002 Sliding Door Hardware, HAWA Junior 250/B, set Top Hung System, With 1 track buffer/1 wall buffer
Product Information
Description
Hafele 942.56.002 Sliding Door Hardware, HAWA Junior 250/B, set
Top Hung System, With 1 track buffer/1 wall buffer
Additional items required to complete installation:
Upper Track, Pre-drilled, Aluminum
Guide Rail, Plastic, 3 m (9 10 1/8)Model : Junior 250/B For 1 doors Version : with 1 track buffer/1 wall buffer Load bearing capacity : (550 lbs) 250 kg For door thickness : min. (1 3/8") 35 mm Application : For 1-leaf and 2-leaf sliding wood doors Suitable for : For a single sliding door without upper track and lower guide channel Adjustment : Height 5 mm
track buffer with adjustable retaining springSupplied with : 2 Running gears
2 Support profiles
2 cover caps
1 track buffer
1 rubber wall buffer
1 floor guide
1 locking wrench
Optional items:
Mortise locks for sliding doors
Connecting Pin, Set for Upper Track
Upper Track Suspension Profile, Pre-DrilledSpecifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.84-1.85.pdf
Hafele 942.56.002 HAWA-Junior 250/B Fitting Set- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,500-3000
- Brand: Hafele
- Part#: 942.56.002
- Condition: new
