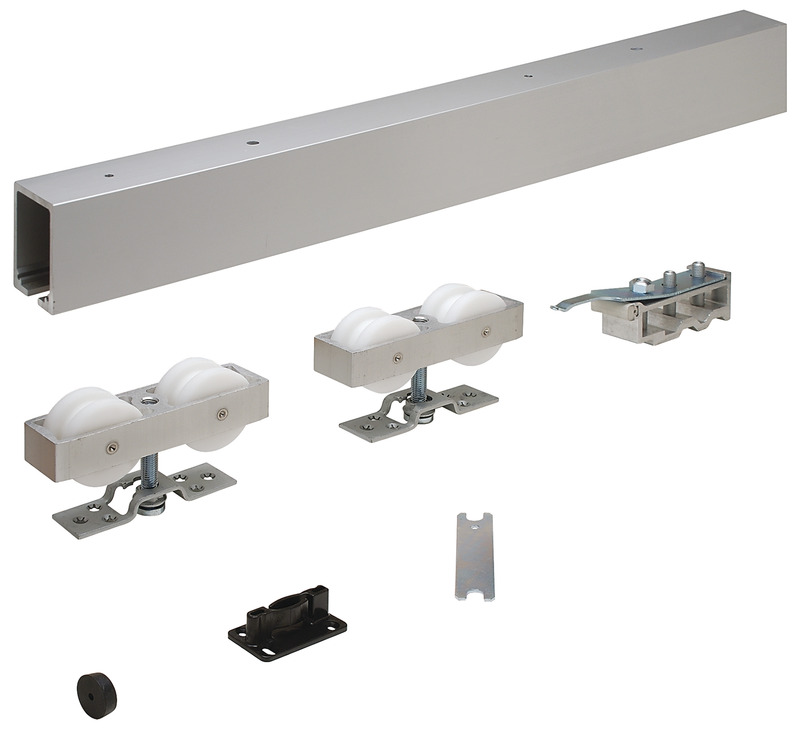

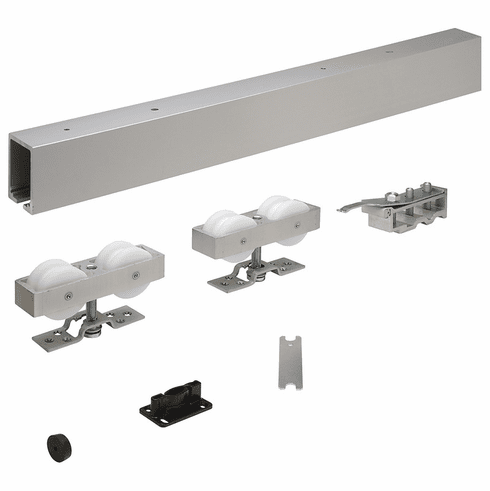

Hafele 942.56.001 Sliding Door Hardware, HAWA Junior 250/A, set HAWA Junior 250/A, With 1 track buffer/1 wall buffer

Product Information

• Description

  Manufacturer: Hafele
  Item: 942.56.001

  Product Title: Sliding Door Hardware, HAWA Junior 250/A, set, HAWA Junior 250/A, With 1 track buffer/1 wall buffer

  Category: Sliding Door Hardware, HAWA Junior 250/A, set, HAWA Junior 250/A, With 1 track buffer/1 wall buffer

  Item Details …

  - Smooth quiet operation

  - Outstanding durability

  - Rattle-free bottom guide

  - Suspension with carrier profile

  - Height adjustable

  - Door stop with adjustable retention spring

  - low wear and tear

  - quiet operation

  - Number of doors per system max. : 1 to 2

  - Number of doors : 1.00

  - For door material : wood

  - Model : 250 A

  - For door weight : ?250 kg

  - For door width : 35?–?3,000 mm

  - Material/finish : Zinc alloy, Aluminium, Plastic, Rubber

  - Controller installation options : Ceiling installation, Wall mounting

  - For door thickness : 35?–?80 mm

  - Adjustment facility : Height adjustment: ±5 mm, Track buffer with adjustable retaining spring

  - For door thickness min. : 1 3/8"

  - Door weight max. : 550 lbs

  - Load bearing capacity : ?550 lbs.

  - Height adjustment : ± 3/16”

  - Area of application : For 1-leaf and 2-leaf sliding wood doors

  - For door height : ?4,000 mm

  - Running position : Top

  - Adjustment facility : side adjustment

  - Installation : Suspension with suspension bar

  - Door processing : for screw fixing

  - Standard : Certified in compliance with EN 1527:2013

  - Classification in compliance with EN 1527 : -|6|3|-|1|0|-|1|3

  - Order reference

  - Order 2 sets for 2-leaf sliding doors.

  - Supplied with:

  - 2 running gears

  - 2 support flanges with hanger bolt and nut, M12

  - 1 track buffer with retaining spring

  - 1 wall buffer

  - 1 clear threshold floor guide

  - 1 height adjustment spanner

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions

  TCH_Architectural_Hardware_2022|Page 1.133



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.82-1.83.pdf

  Hafele 942.56.001 HAWA-Junior 250/A Fitting Set


  • Hardware > Building Materials > Door Hardware
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 942.56.001
  • Condition: new

• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Upper Track, Pre-drilled, Aluminum (choose one):


  • for HAWA Junior 250/A, B, Length: 4 m (13’ 1 1/2”) for HAWA Junior 250/A, B, Length: 6 m (19’ 8 1/4”)

    942.56.940 942.56.960

    Click to order Click to order



  Guide Rail, Plastic, 3 m (9’ 10 1/8”) (choose one):


  • for Hawa Junior, Silenta, plastic, black, length 3,000 mm

    941.61.130

    Click to order



  Optional Accessories:



  • Track Stopper, with Adjustable Retention Spring
  • Bar Bolt Lock, Hawa Doorfix
  • Sealing Profile, Drilled
  • Connecting Pin, Set for Upper Track
  • Sealing Profile, Drilled
