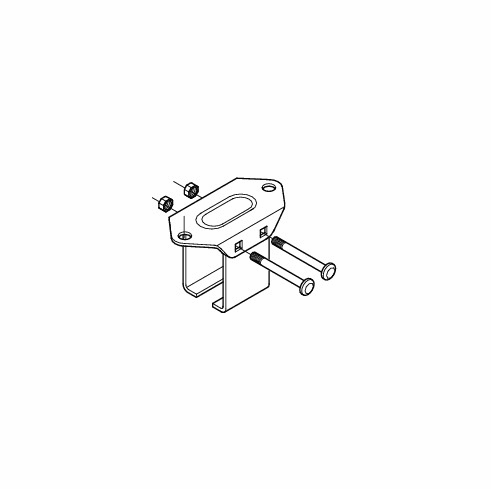

Hafele 942.52.083 Soffit Mounting Bracket, Open, For Parallel and Cross Ear Applications Straightaway 320

Product Information

• Description

  Manufacturer: Hafele
  Item: 942.52.083

  Product Title: Soffit Mounting Bracket, Open, For Parallel and Cross Ear Applications, Straightaway 320, Galvanized finish

  Category: Soffit Mounting Bracket, Open, For Parallel and Cross Ear Applications, Straightaway 320, Galvanized finish

  Item Details …

  - Metal door thickness: minimum 50 mm (2”)

  - Stiles should be a minimum of 125 mm (4 1/2”) toaccommodate hanger aprons

  - Wood doors should be framed, ledged and braced

  - For industrial or commercial and barn doors

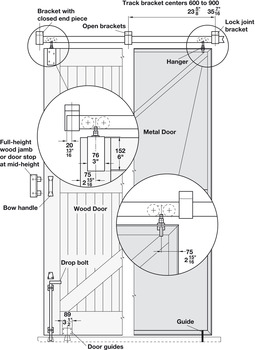

  - Top hung straight sliding doors on single runs of track

  - Metal doors angle framed or hollow tubular sections, sheeted one or both sides

  - Ensure adequate bracing

  - Weatherhoods by installer are recommended on external doors

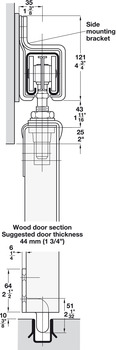

  - Track brackets are side-mounted

  - Floor channel is set flush, but the stay roller floor guide is an alternative

  - All hangers can be adjusted vertically

  - Product type : Soffit Mounting Bracket

  - For door height (inches) : 16'

  - For min. glass thickness (inches) : 1 1/2"

  - For max. glass thickness (inches) : 2 1/2"

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.149



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.142-1.145.pdf

  Hafele 942.52.083 Soffit mounting bracket, steel, galvanized (each)


  • Hardware > Hardware Accessories
  • Hardware,Hafele,10-50
  • Brand: Hafele
  • Part#: 942.52.083
  • Condition: new
