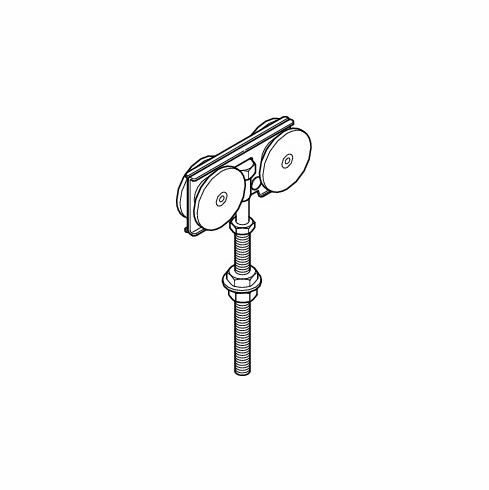

Hafele 942.52.011 Metal Door Trolley Hanger, Vertical and Lateral Adjustment With Extended Pendant Straightaway 320, For Use With Hollow Tubular Frame Sections Up to 90 (3 9/16") Deep or Steel Angle Construction

Product Information

• Description

  Manufacturer: Hafele
  Item: 942.52.011

  Product Title: Metal Door Trolley Hanger, Vertical and Lateral Adjustment With Extended Pendant, Straightaway 320, For Use With Hollow Tubular Frame Sections Up to 90 (3 9/16”) Deep or Steel Angle Construction

  Category: Metal Door Trolley Hanger, Vertical and Lateral Adjustment With Extended Pendant, Straightaway 320, For Use With Hollow Tubular Frame Sections Up to 90 (3 9/16”) Deep or Steel Angle Construction

  Item Details …

  - 2 pcs. required per panel

  - Metal door thickness: minimum 50 mm (2”)

  - Stiles should be a minimum of 125 mm (4 1/2”) toaccommodate hanger aprons

  - Wood doors should be framed, ledged and braced

  - For industrial or commercial and barn doors

  - Top hung straight sliding doors on single runs of track

  - Metal doors angle framed or hollow tubular sections, sheeted one or both sides

  - Ensure adequate bracing

  - Weatherhoods by installer are recommended on external doors

  - Track brackets are side-mounted

  - Floor channel is set flush, but the stay roller floor guide is an alternative

  - All hangers can be adjusted vertically

  - Number of rollers : 4.00

  - For door height (inches) : 16'

  - For min. glass thickness (inches) : 1 1/2"

  - For max. glass thickness (inches) : 2 1/2"

  - Running gear guided by : Ball bearing

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.150



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.142-1.145.pdf

  Hafele 942.52.011 Running Gear for Straightaway 320, metal application
