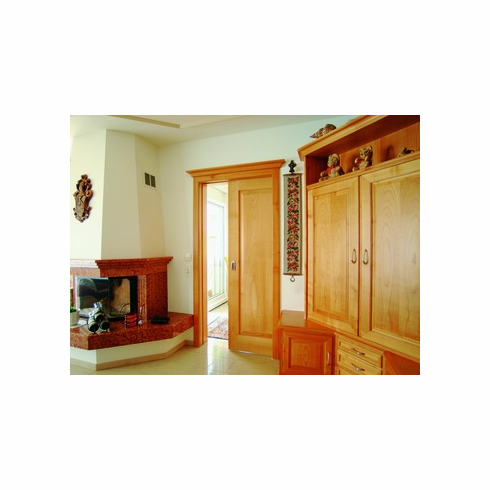

Hafele 940.94.101 Pocket Door Framing Kit With Jr. Sliding Hardware Type I

Product Information

• Description

  Manufacturer: Hafele
  Item: 940.94.101

  Product Title: Pocket Door Framing Kit With Jr. Sliding Hardware, Futura, Type I

  Category: Pocket Door Framing Kit With Jr. Sliding Hardware, Futura,

  Item Details …

  - Designed to fit into standard 2x4 wood or steel constructed interior walls

  - Provides an efficient way to save space in tight room designs

  - Specially engineered, cold-formed, zinc-plated steel studs prevent bowing of the pocket walls

  - Front steel studs have a special pocket to receive 1/2” thick sheetrock

  - Simple and straightforward installation

  - Wood header is produced out of plywood in order to prevent warping

  - Exposed part of wood header is laminated to match the color of the sliding track

  - Suitable for sliding doors installed into dining rooms, kitchens, bathrooms, closets or master bedrooms

  - For door thickness max. : 1 3/4”

  - For door width (inches) : 24 - 36"

  - Length (inch) : Track: 6' 6 3/4"

  - Order reference

  - Supplied with: mounting instructions

  - Supplied with:

  - 1 x Header assembly

  - 2 x Front vertical stud

  - 2 x Back vertical stud

  - 4 x Floor plates (2 x front and 2 x back)

  - 2 x Filler strip

  - 1 x joing plate

  - Mounting screws

• Data Sheet

  Detailed Data Sheet

• Product Resources

  TCH_Architectural_Hardware_2022|Page 1.227



• Specifications

  For detailed PDF specifications, click:
  Hafele Sliding Door Catalog Page: selection_1.189-1.191.pdf

  Hafele 940.94.101 Futura Framing Kit Type I with HAWA Junior 40/Z set


  • Hardware > Hardware Accessories
  • Hardware,Hafele,500-3000
  • Brand: Hafele
  • Part#: 940.94.101
  • Condition: new
