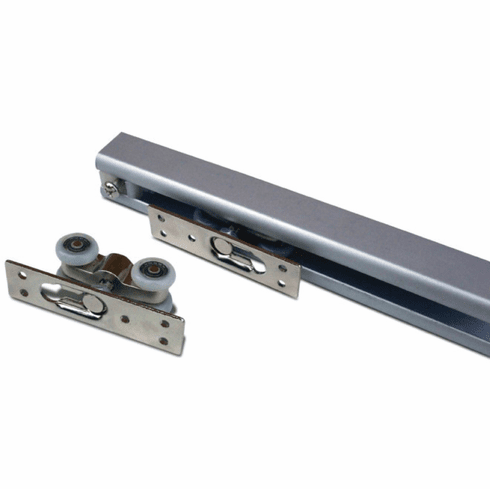

Hafele 940.55.000 Sliding Door Hardware, Straightaway 50, set
Product Information
Description
Manufacturer: Hafele
Item: 940.55.000
Product Title: Sliding Door Hardware, Straightaway 50, set, Top hung system, For 1 door
Category: Sliding Door Hardware, Straightaway 50, set, Top hung system, For 1 door
Item Details …
- For door material : wood, glass
- For door weight : ?50 kg
- Material/finish : Running gear: Aluminium, Rollers: Plastic, Zinc alloy
- Controller installation options : Wall pocket solution
- For door thickness : ?25 mm
- For door thickness min. : 1"
- Load bearing capacity : 220 lbs.
- For door height (inches) : Max: 6' 10 11/16"
- Area of application : For residential and light duty commercial use
- Suitable for : Commercial and public buildings
- For door height : ?2,100 mm
- Running position : Top
- Supplied with:
- 2 x Running gear
- 2 x Track stopper

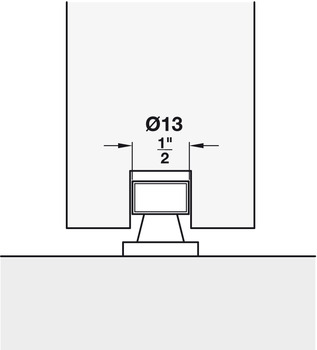

- 1 x Bottom guide
- Mounting materialsData Sheet
Product Resources
Specifications
For detailed PDF specifications, click:
Hafele Sliding Door Catalog Page: selection_1.138-1.139.pdf
Hafele 940.55.000 Straightaway 50 Fitting Set- Hardware > Building Materials > Door Hardware
- Hardware,Hafele,10-50
- Brand: Hafele
- Part#: 940.55.000
- Condition: new
