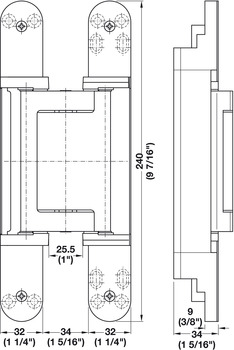

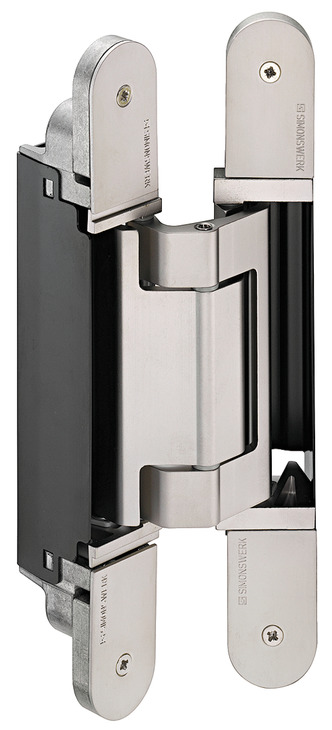

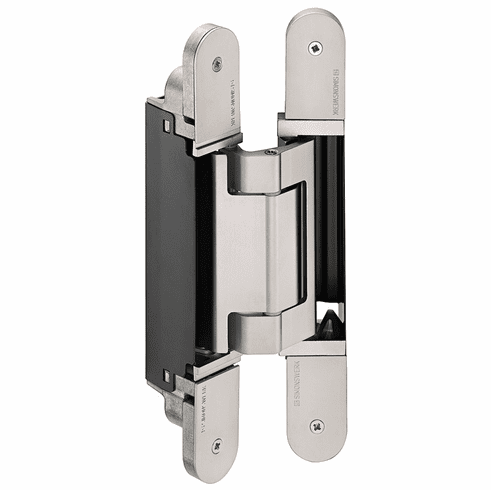

Hafele 924.19.537 Concealed Hinge, TECTUS TE 640 3D A8 concealed, 3D adjustable, size 240 mm, Black powder-coated

Product Information

• Description

  Hafele 924.19.537 Concealed Hinge, TECTUS TE 640 3D A8
  concealed, 3D adjustable, size 240 mm, Black powder-coated

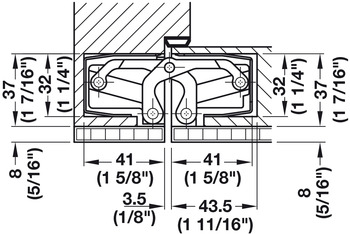

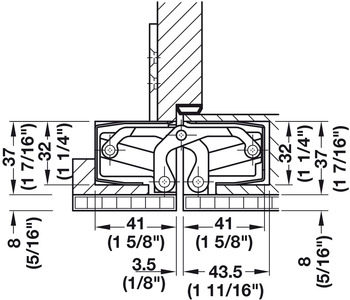

  Application : Used in door frames made out of hollow metal or wood for flush doors with an additional up to 8 mm (5/16��) thick surface applied panel
  Maximum door size: 4 x 8 for a single door, 8 x 8 for a pair of doors

  Features : Maintenance-free slide bearings

  Adjustment : Continuously 3D adjustable: Width and height �3 mm (1/8"), Depth: �1.0 mm (1/16")

  Suitable for : Left and right hand applications

  Door weight : (352 lbs.) �� 160 kg

  Door thickness : �� (1 9/16") 40 mm

  Opening angle : ��180 �

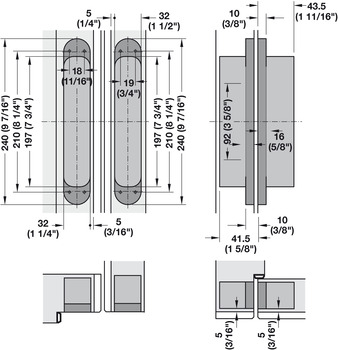

  Router diameter : Bit: (15/16") 24
  Guide: (1 3/16") 30

  Material : Aluminum die-cast



  Optional items:
  Mounting plate
  Receiver
