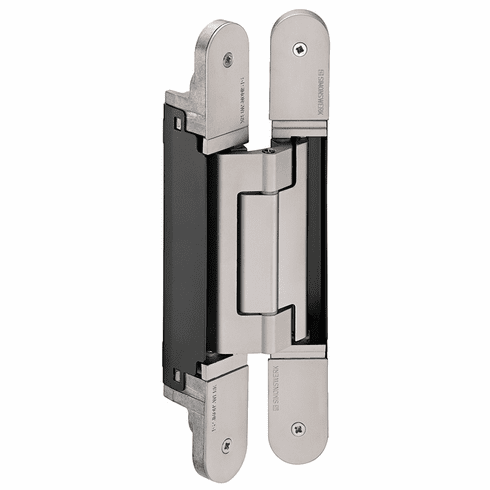

Hafele 924.19.480 Concealed Hinge, TECTUS TE 640 3D concealed, 3D adjustable, size 240 mm, Polished brass-plated

Product Information

• Description

  Manufacturer: Hafele
  Item: 924.19.480

  Product Title: Concealed Hinge, TECTUS TE 640 3D, concealed, 3D adjustable, size 240 mm, Polished brass

  Category: ,

  Item Details …

  - Mounting : For DIN left and DIN right hand use

  - Version : Maintenance-free slide bearings

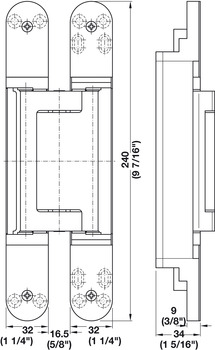

  - Flange shape : rounded

  - Flange width : 32 mm

  - Material : Aluminum, Steel

  - Flange height : 240 mm

  - Door weight max. : 440 lbs

  - Door thickness min. : 1 9/16"

  - Model series : TECTUS TE 640 3D

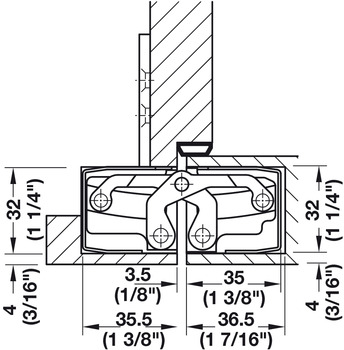

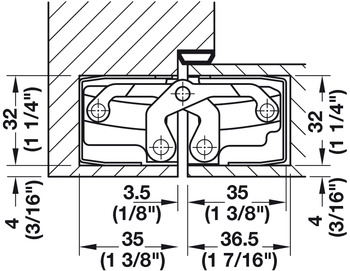

  - Area of application : Used in door frames made out of hollow metal or wood for flush interior doors.UL listed for 20 minute rated fire doors (maximum door size: 4' x 8' for a single door, 8' x 8' for a pair of doors

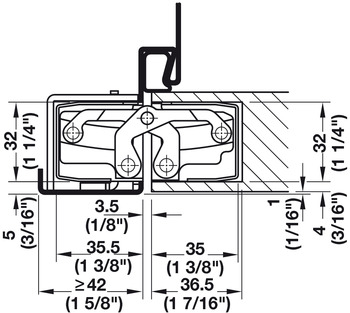

  - For frame type : Steel frame, Wooden frame, Aluminium frame

  - Max. door weight for 2 hinges : 200.00 kg

  - Opening angle : 180.00 °

  - Door thickness : ≥40 mm

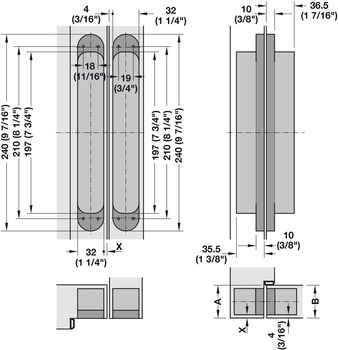

  - Router bit Diameter: : 24.00 mm

  - Router bit Diameter: : Bit: 15/16"#Guide: 1 3/16"

  - Thrust ring Diameter: : 30.00 mm

  - Adjustment facility : 3DContinuous, Side: 3 mm, Height: -3 – 3 mm, Closing pressure: ±1 mm

  - Standard : Certified in compliance with EN 1935:2002

  - Grade : 4|7|6|1|1|3|1|14
