Hafele 833.76.332 LED3044 24 volts direct current 4.8 watts per meter 2700-5000K CRI90 5 meters

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.332

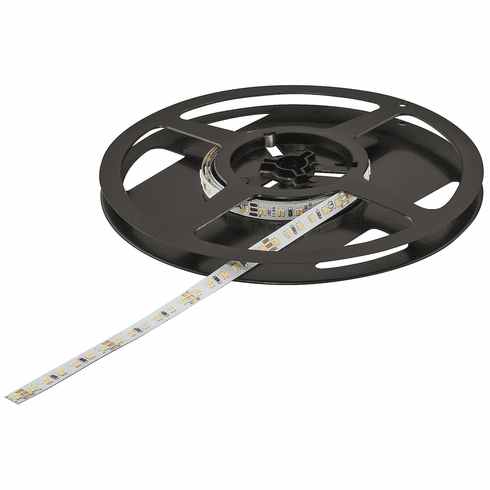

  Product Title: Flexible Strip Light, Häfele Loox5 LED 3044, 24 V, multi-white, (5/16") 8 mm, 2 x 120 LEDs/m, 4.8 W/m, Warm white 2700 K to cool white 5000 K, (196 7/8") 5 m

  Category: Flexible Strip Light, Häfele Loox5 LED 3044, 24 V, multi-white, (5/16") 8 mm, 2 x 120 LEDs/m, 4.8 W/m

  Item Details …

  -

  - Optimized light mixture

  -

  - Cool white and warm white LEDs in the smallest of spaces

  - Optimal light mixture without flickering

  - Color temperature : 2700?–?5,000 K

  - Light color : Warm white to cool white

  - Nominal voltage : 24.00 V

  - Wattage/m : 4.80 W

  - Luminous flux/m : 425?–?465 lm

  - Luminous efficacy : 89?–?97 lm/W

  - Max. strip length (visual) : 8.50 m

  - Energy efficiency class : F

  - Height (inch) : 1/16"

  - Width (inch) : 5/16"

  - Dimmable : yes

  - Area of application : Plinths, behind furniture and objects, Ceiling light direct/indirect

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Section length : 50.00 mm

  - Life time : L80/B10: >50,000 h

  - Color rendering index Ra : >90

  - Color rendering index R9 : >50

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Order reference

  - Please order lead separately. Color control via Häfele Connect Mesh 6-way distributor with multi-white adapter and remote control or smartphone. Please order separately. Installation of the free Häfele Connect Mesh app is required.

  - Supplied with:

  - 1 roll


  Additional Information …

  Maximum strip length (visual) describes a strip section with a visually imperceptible drop in luminous flux of max. 30%. Please note: A strip section with a new power supply that follows immediately is noticeably brighter.Max. wattage-dependent strip length on the driver, see technical data for LED strip lights.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Fitting instructions for Loox5 LED 2064 / 3070 / 3044 / 3047 / 3049

  Safety Notes for LED Strip Lights

  UL Certificate E473379 - US

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Lead, Häfele Loox5 for LED-Band multi-white (5/16") 8 mm, 24 V, AWG 20 (choose one):


  • Clipbreite 10 mm, Length: 100 mm (4") Clip width 10 mm, Length: 2000 mm (78 3/4")

    833.93.743 833.95.708

    Click to order Click to order



  Distributor, Häfele Connect Mesh 24 V 2-pin (monochrome) (choose one):


  • with programmable switching input, Voltage 24 V, max. connected wattage 90 W

    850.00.043

    Click to order



  Adapter, Häfele Loox5, multi-white, for Häfele Connect Mesh 6-way distributor (choose one):


  • For Häfele Connect Mesh 6-way distributor, Voltage 24 V, max. connected wattage 90 W

    833.77.830

    Click to order



  Optional Accessories:



  • Interconnecting lead, Häfele Loox5 for LED strip light, multi-white, (5/16") 8 mm
  • Clip connector, Häfele Loox5 for LED strip light, multi-white, 8 mm (5/16")
  • Corner connector, Häfele Loox5 for LED strip light, multi-white, 8 mm (5/16")
  • Remote control, Häfele Connect Mesh
  • Wall mounted push button, Häfele Connect Mesh
