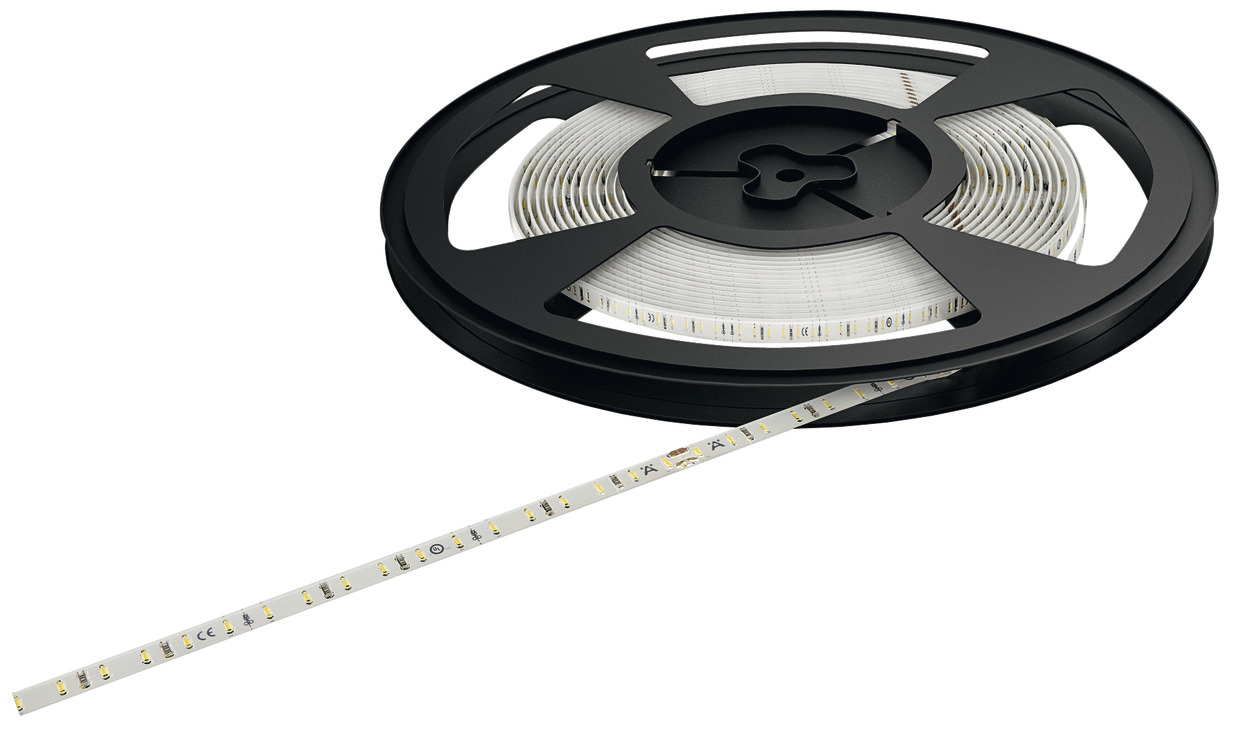

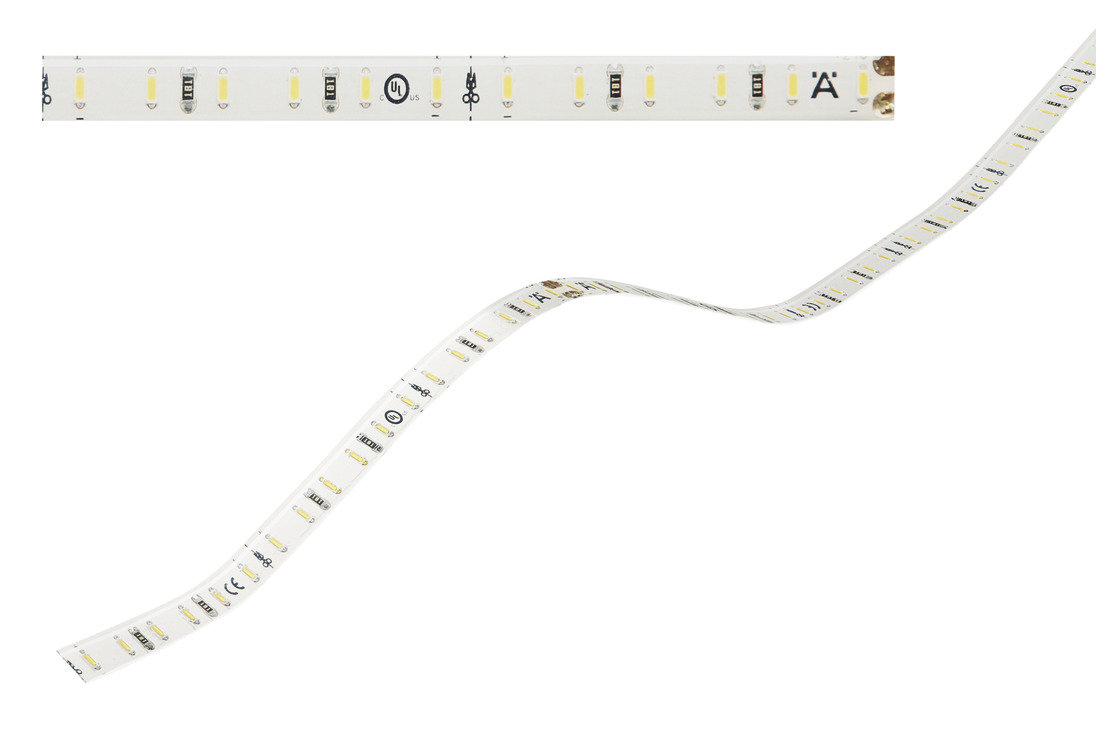

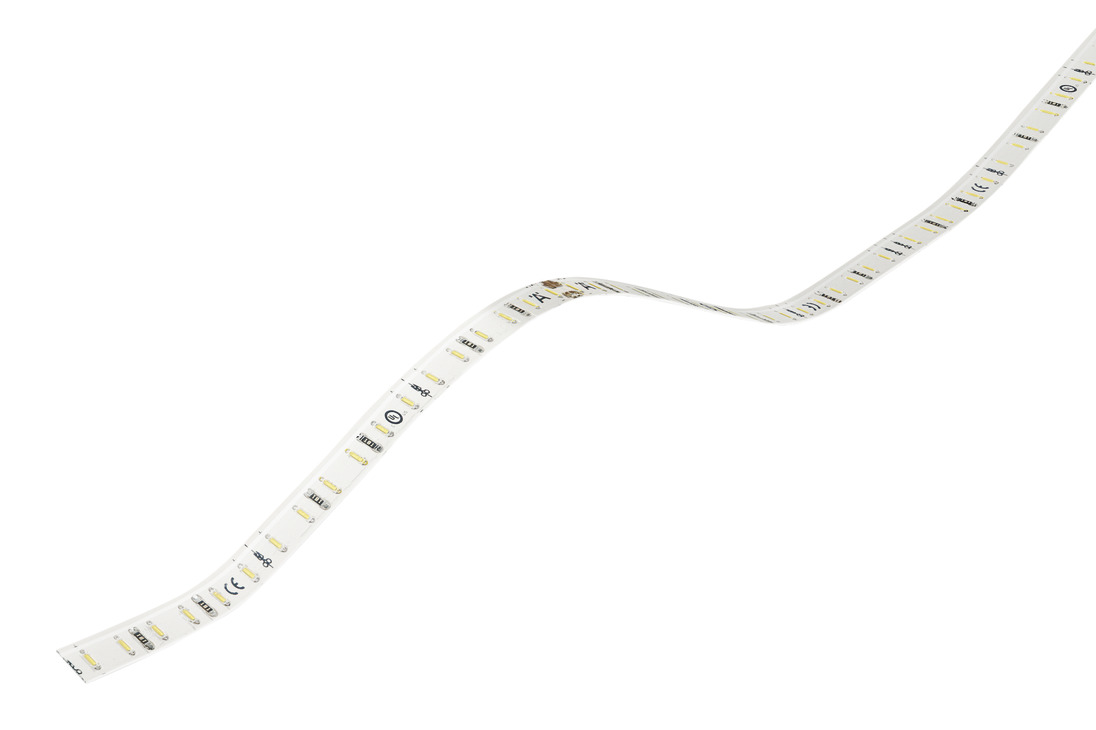

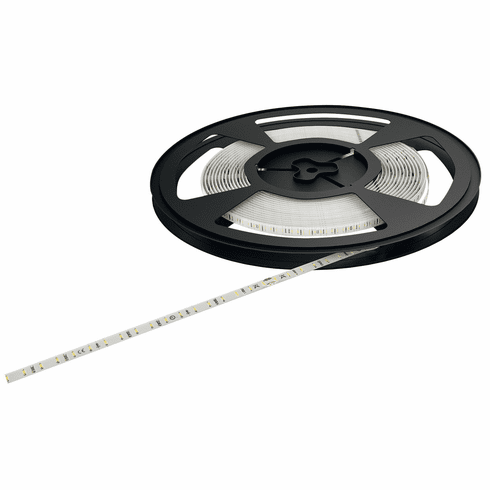

Hafele 833.76.222 Flexible Strip Light, Loox LED 3030, 24 V 120 LEDs/m, 9.6 W/m,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.76.222

  Product Title: Flexible Strip Light, Loox LED 3030, 24 V, 120 LEDs/m, 9.6 W/m, Light color: Cool white 4,000 K, 5,000 mm

  Category: Flexible Strip Light, Loox LED 3030, 24 V, 120 LEDs/m, 9.6 W/m

  Item Details …

  - *CRI 90 lights are Title 24 Compliant

  - *CRI 90 lights offer more vibrant, true color rendering than lower CRI products

  - Ideal for applications with direct illumination

  - The cut silicone strip can be re-used

  - The light can be shortened every 50 mm (2”)

  - Max. strip light length: 5 m (16’ 4 7/8”)

  - Max. watts per lead: 48

  - Dimmable

  - Light color : Cool white

  - Nominal voltage : 24.00 V

  - Wattage/m : 9.60 W

  - Luminous efficacy : 95 lm/W

  - Strip length : 5.00 m

  - Dimmable : yes

  - Area of application : For Retrofitting

  - Version : Can be shortenedDimmable

  - Material : Plastic

  - Color : White

  - Strip width : 8.00 mm

  - Strip height : 2.30 mm

  - Section length : 50.00 mm

  - Energy efficiency class : A+

  - Degree of protection : IP20

  - Installation : Self-adhesive

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 2 m (78 3/4”) lead


  Additional Information …

  The specified light color applies to the LED.The silicone sleeve changes the color temperature of the strip light.
