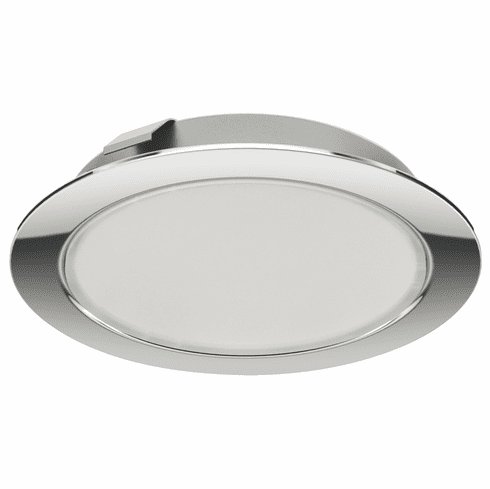

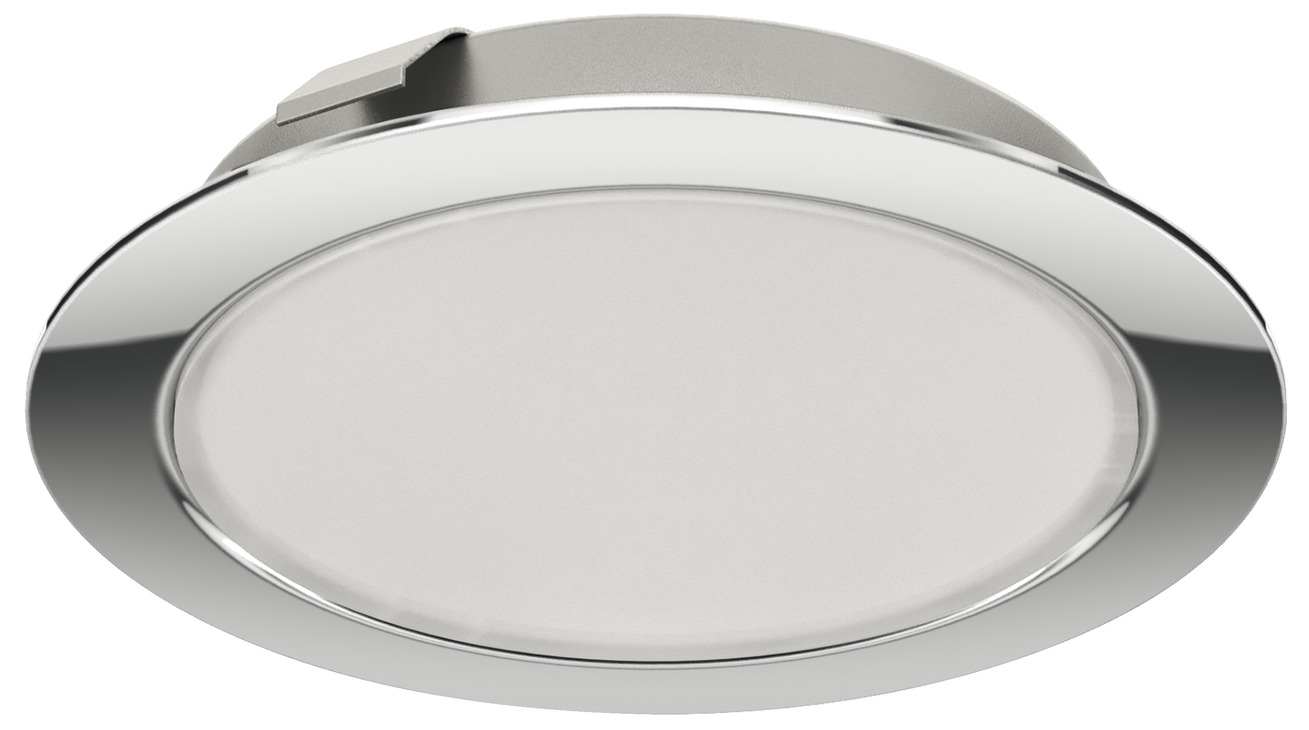

Hafele 833.75.142 Recess/Surface Mounted Light, Round, Loox LED 3038, 24 V Polished chrome, light color: Cool white 5000 K,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.75.142

  Product Title: Recess/Surface Mounted Light, Monochrome, Loox LED 3038, 24 V, Drill hole ?: 55 mm (2 3/16"), Polished chrome, light color: Cool white 5000 K

  Category: Recess/Surface Mounted Light, Monochrome, Loox LED 3038, 24 V, Drill hole ?: 55 mm (2 3/16"), Polished chrome, light color: Cool white 5000 K

  Item Details …

  - *CRI 90 lights are Title 24 Compliant

  - *CRI 90 lights offer more vibrant. true color rendering than lower CRI products

  - Provides excellent color rendering and illumination

  - Dimmable

  - Degree of protection: IP20

  - Color temperature : 5,000 K

  - Light color : Cool white

  - Luminous flux : 245 lm

  - Nominal voltage : 24.00 V

  - Wattage : 3.00 W

  - Luminous efficacy : 82 lm/W

  - Drill hole ุ : 55.00 mm

  - Housing color/finish : chrome plated, polished

  - Model : LED 3038

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : *CRI 90 lights are Title 24 Compliant*CRI 90 lights offer more vibrant. true color rendering than lower CRI productsProvides excellent color rendering and illuminationDimmableDegree of protection: IP20

  - Energy efficiency class : G

  - Drill hole ุ : 2 3/16"

  - Height (inch) : 1/2"

  - Dimmable : yes

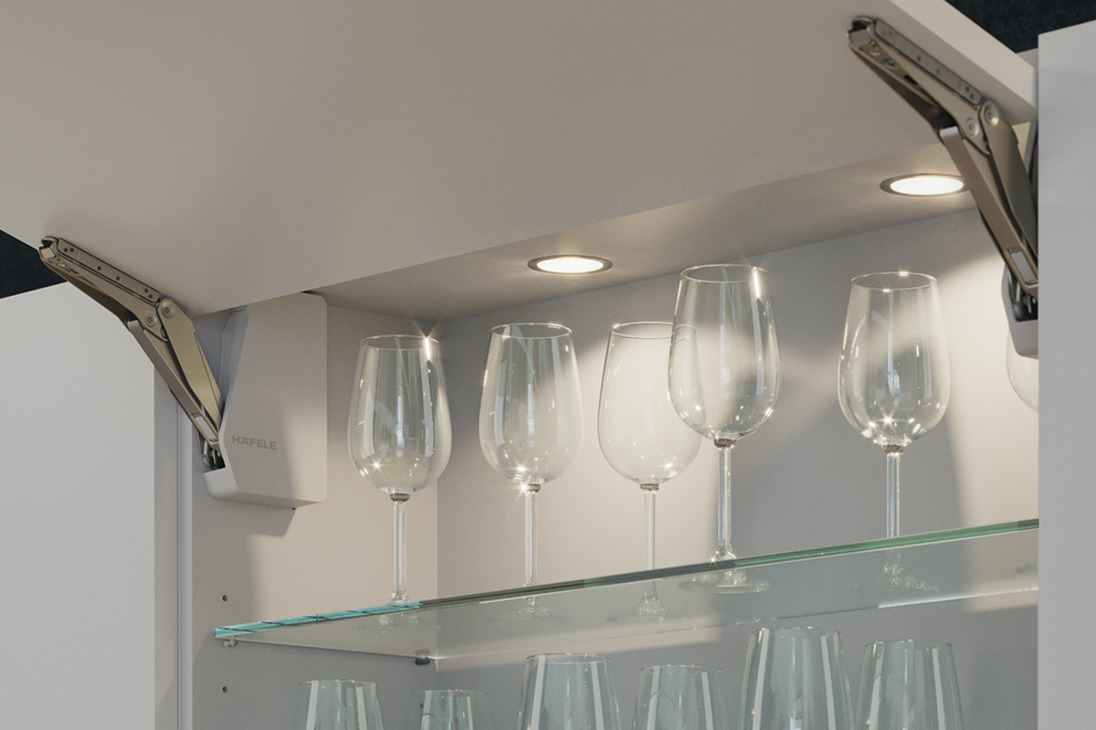

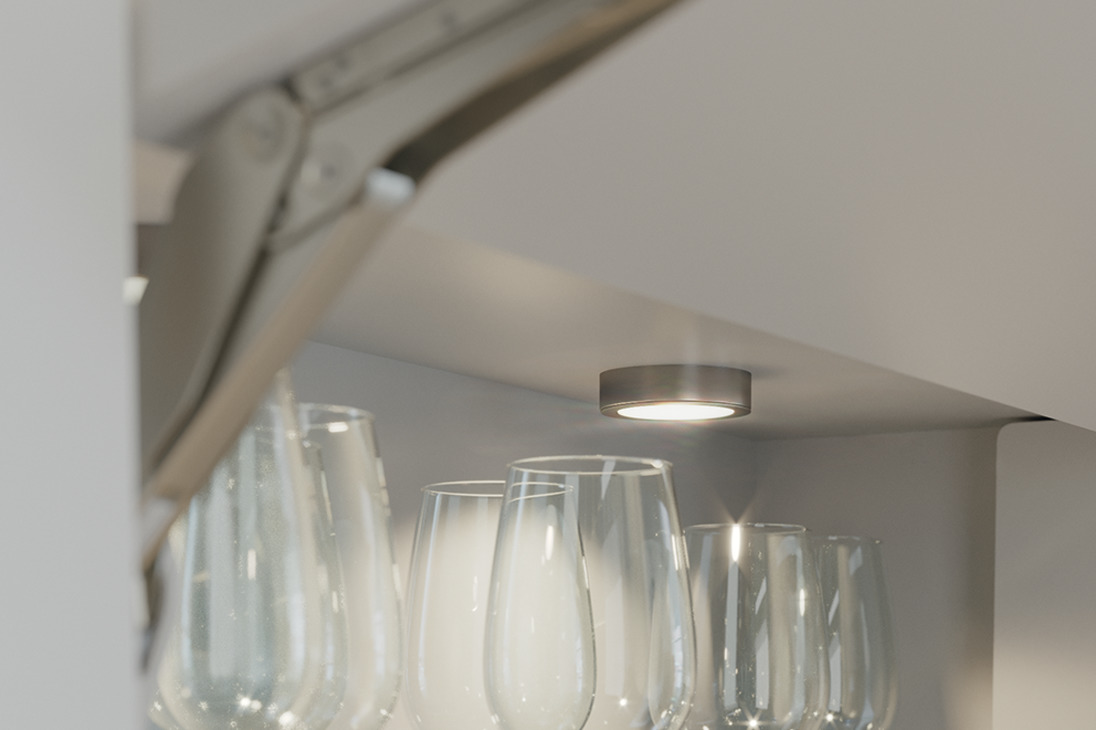

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Steel

  - Degree of protection : IP20

  - Cable length : 2,000.00 mm

  - Supplied with:

  - 2 m (78 3/4”) lead

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for Loox LED 3038

  EU Declaration of Conformity

  EU Declaration of Conformity

  Loox – Electrical Code Compliance



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Surface Mounted Ring, for Loox LED 2020/2047/2048/3038/3039 (choose one):


  • round, Matt nickel round, Black round, Polished chrome round, Silver colored round, Stainless steel

    833.72.800 833.72.801 833.72.802 833.72.803 833.72.804

    Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Premium 6-Channel Remote Receiver, Hไfele Loox, 24 V
