Hafele 833.72.471 LED2090 12 volts 1.2 watts 3000K CRI90 aluminum 2 meter cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.471

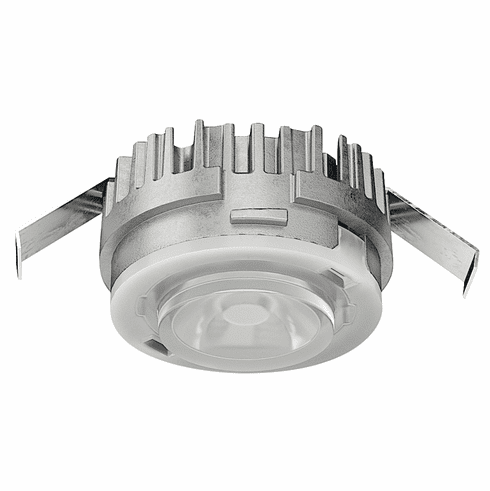

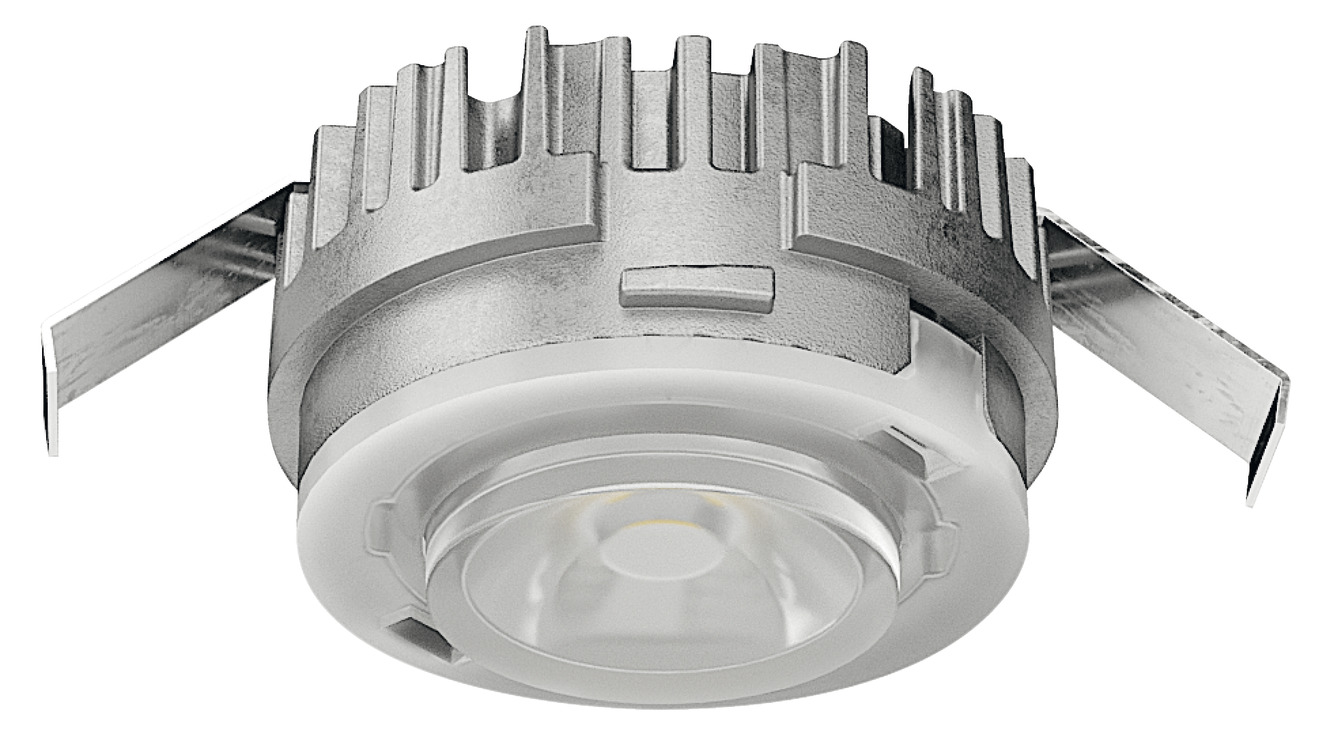

  Product Title: Recess/surface mounted lights, Monochrome, Häfele Loox5 LED 2090, aluminum, 12 V, Drill hole ?: 26 mm (1"), Warm white 3000 K

  Category: Recess/surface mounted lights, Monochrome, Häfele Loox5 LED 2090, aluminum, 12 V, Drill hole ?: 26 mm (1")

  Item Details …

  - Narrow refraction angle for staging objects

  - Suitable for mini concealed hinge drill hole Ø 26 mm (1")

  - Nominal voltage : 12.00 V

  - Wattage : 1.20 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 26.00 mm

  - Model : LED 2090

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Version : Monochrome

  - Drill hole Ø : 1"

  - Dimmable : yes

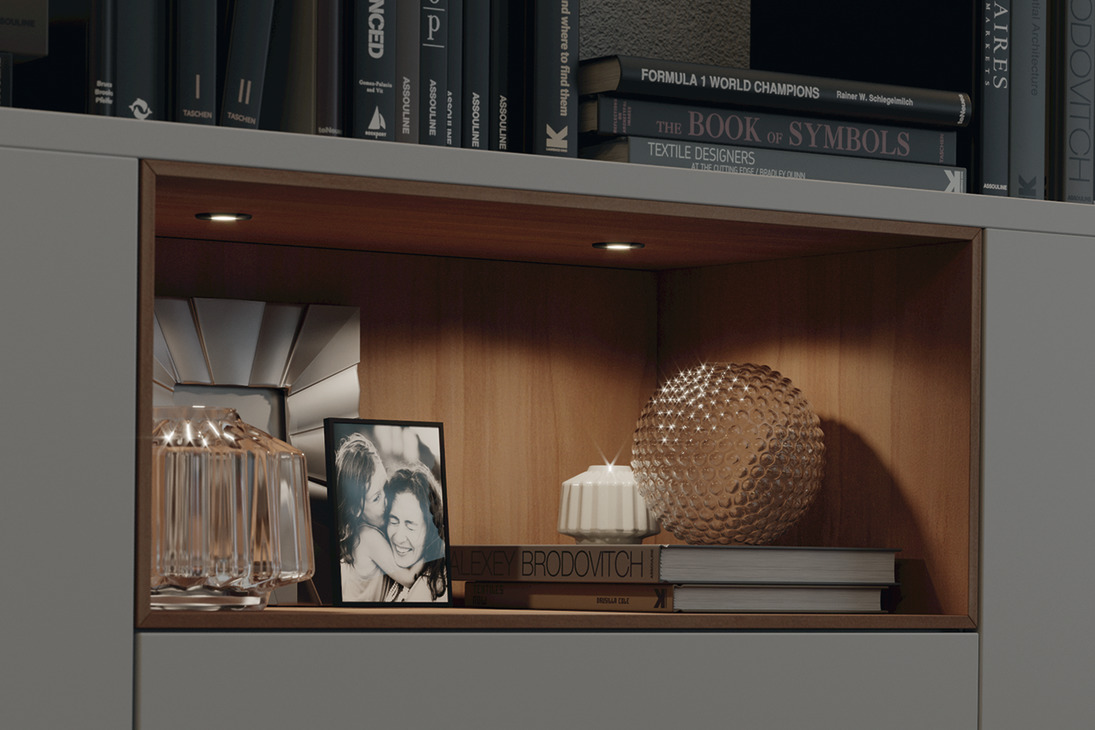

  - Area of application : Kitchen and living room furniture, display cabinets

  - Housing material : Aluminum

  - Color rendering index R9 : >60

  - Weighted energy consumption : 1.32 kWh/1000 h

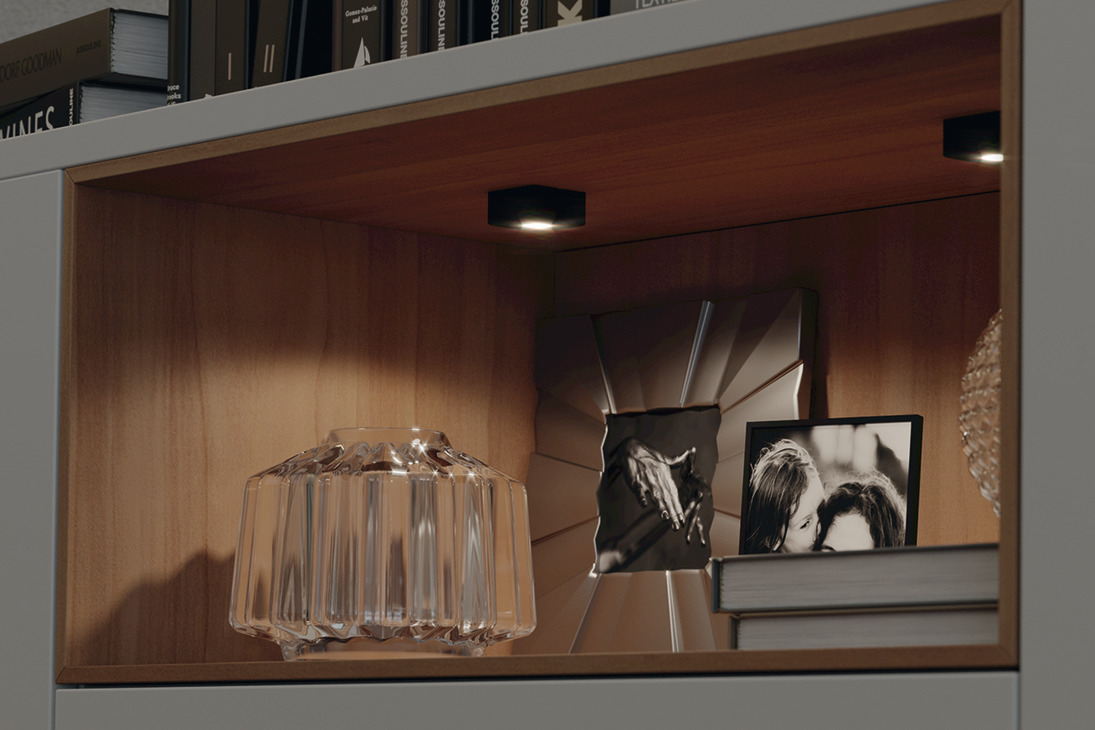

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Order reference

  - Please order housing separately.

  - Supplied with:

  - 1 light module with 2000 mm (78 3/4") lead


  Additional Information …

  The IP44 degree of protection is reduced to IP20 when surface mounting or recess mounting with through hole.

• Data Sheet

  Detailed Data Sheet

• Product Resources

  CAD data

  Installation instructions for LED 2090 3090

  Loox – Electrical Code Compliance

  Planning data LDT (DIALux)

  Hafele_Lighting_2024|Page 50



• Brand PDF Catalogs

  Click on a Category to open a PDF catalog:

  Sliding and Folding Catalog

  Fineline Brochure

  Free Flap Fittings Brochure

  The Complete Architectural Hardware Catalog

  Dialock In Hotels Catalog

  Dialock System Catalog

  IXConnect Invisible Heroes

  One Room One Face Catalog

  Architectural Hardware: American Standard Catalog

  Closet Catalog

  Decorative Wood Catalog

  Cornerstone Catalog

  Decorative Hardware Catalog

  Kitchen Solutions Catalog

  Loox5 Lighting Catalog

  Furniture Cabinetry Hardware Catalog

  Designing Accessibility HEWI Catalog

  The Complete Cabinet



• Required Products & Optional Accessories

  Note: Add the current product in cart before ordering required products below ...

  Required Products:

  Surface Mounted Housing Trim Ring, For Häfele Loox5 LED 2090/3090 (choose one):


  • Silver colored Matt nickel White Black Anthracite Brown Stainless steel colored Silver colored Matt nickel White Black Anthracite Brown Stainless steel colored

    833.89.236 833.89.237 833.89.238 833.89.239 833.89.240 833.89.241 833.89.242 833.89.243 833.89.244 833.89.245 833.89.246 833.89.247 833.89.248 833.89.249

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Recess Mounted Housing Trim Ring, For Häfele Loox5 LED 2090/3090 (choose one):


  • Silver colored Matt nickel White Black Anthracite Brown Stainless steel colored Silver colored Matt nickel White Black Anthracite Brown Stainless steel colored

    833.89.222 833.89.223 833.89.224 833.89.225 833.89.226 833.89.227 833.89.228 833.89.229 833.89.230 833.89.231 833.89.232 833.89.233 833.89.234 833.89.235

    Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order Click to order



  Optional Accessories:



  • Distributor, Häfele Connect Mesh 12 V with switching function 2-pin (monochrome)
