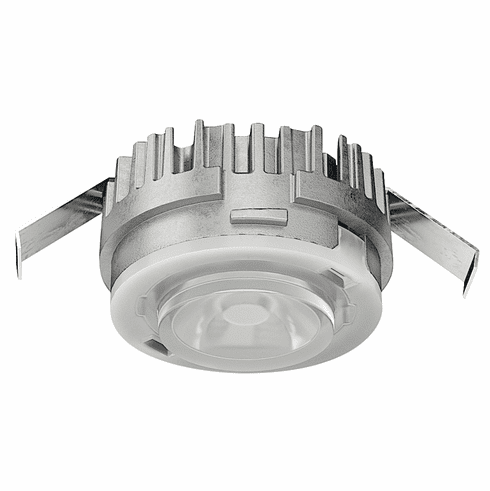

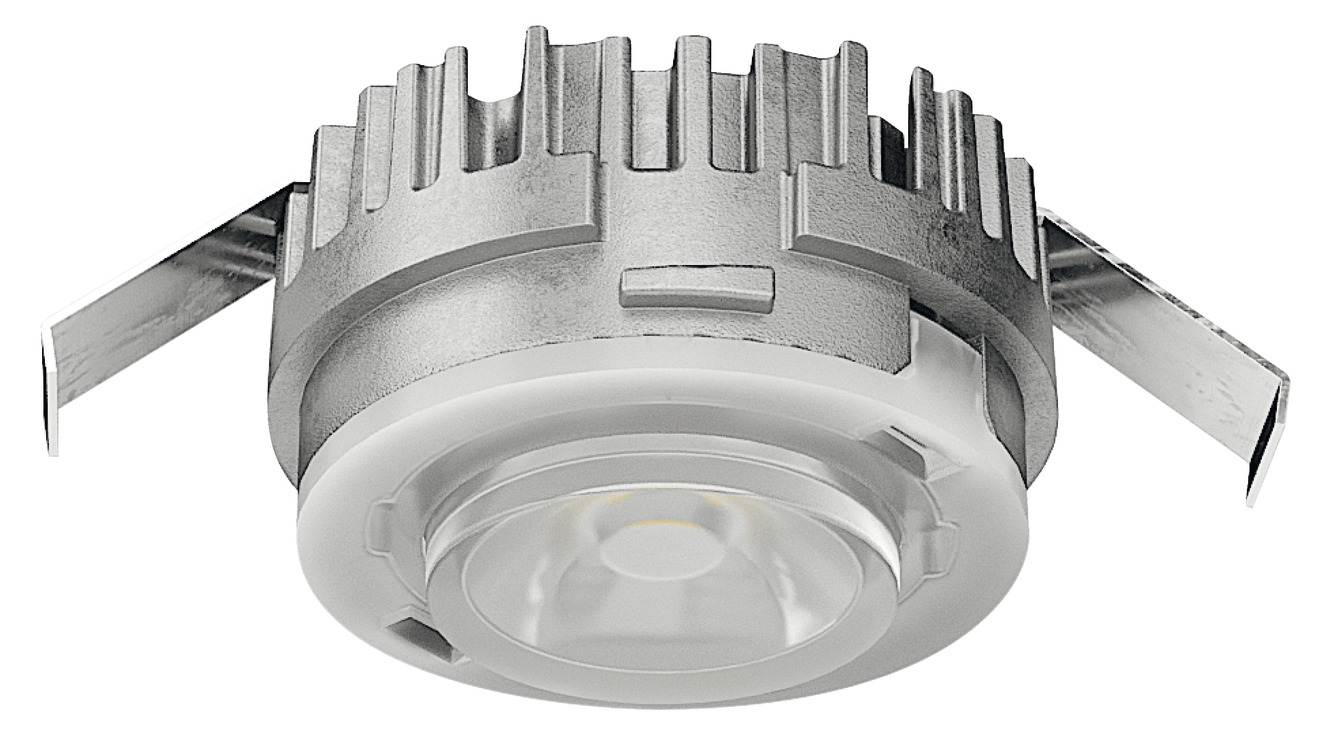

Hafele 833.72.470 LED2090 12 volts 1.2 watts 2700K CRI90 aluminum 2 meter cable

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.470

  Product Title: Recess/surface mounted lights, Monochrome, Häfele Loox5 LED 2090, aluminum, 12 V, Drill hole ?: 26 mm (1"), Warm white 2700 K

  Category: Recess/surface mounted lights, Monochrome, Häfele Loox5 LED 2090, aluminum, 12 V, Drill hole ?: 26 mm (1")

  Item Details …

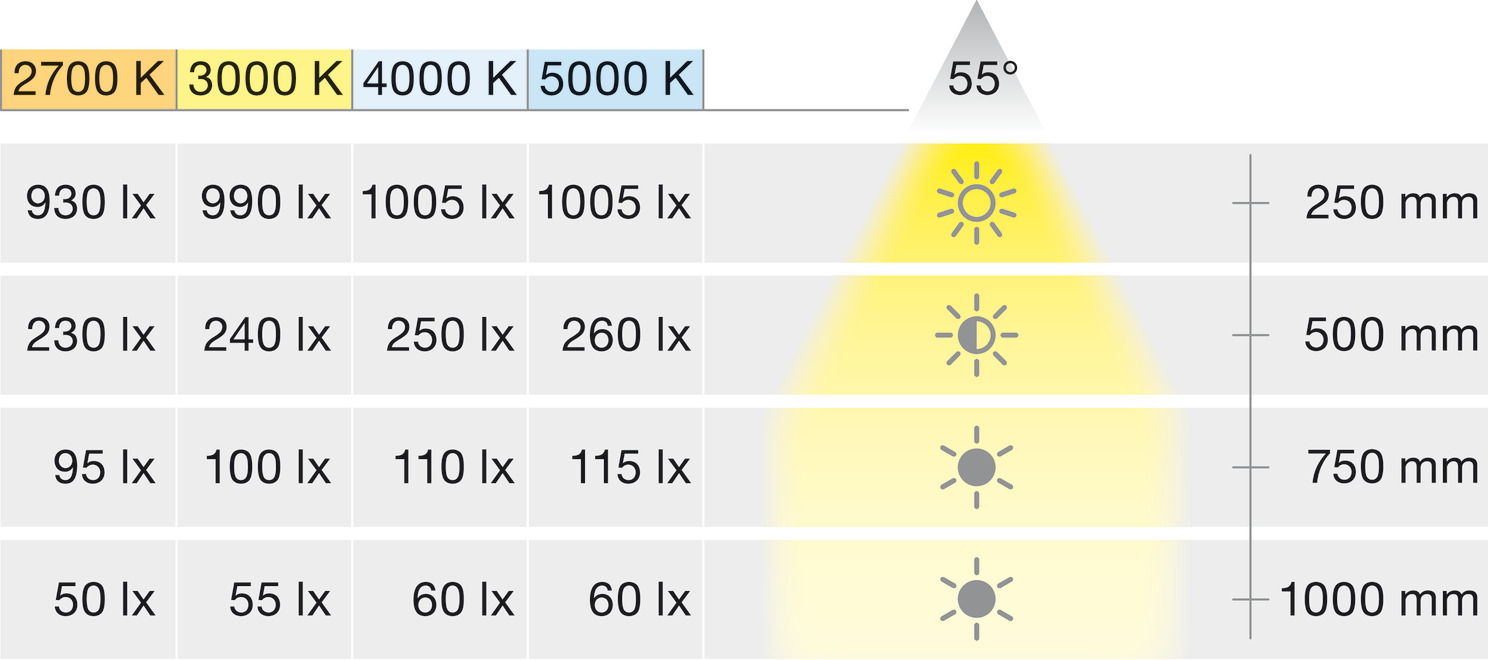

  - Narrow refraction angle for staging objects

  - Suitable for mini concealed hinge drill hole Ø 26 mm (1")

  - Nominal voltage : 12.00 V

  - Wattage : 1.20 W

  - Color rendering index Ra : >90

  - Drill hole Ø : 26.00 mm

  - Model : LED 2090

  - Installation : For mounting in drilled hole and for clamp fixing, or for screw fixing

  - Version : Monochrome

  - Drill hole Ø : 1"

  - Dimmable : yes

  - Area of application : Kitchen and living room furniture, display cabinets

  - Housing material : Aluminum

  - Color rendering index R9 : >60

  - Weighted energy consumption : 1.32 kWh/1000 h

  - Degree of protection : IP45 (recess mounted light); IP20 (surface mounted downlight)

  - Cable length : 2,000.00 mm

  - Order reference

  - Please order housing separately.

  - Supplied with:

  - 1 light module with 2000 mm (78 3/4") lead


  Additional Information …

  The IP44 degree of protection is reduced to IP20 when surface mounting or recess mounting with through hole.
