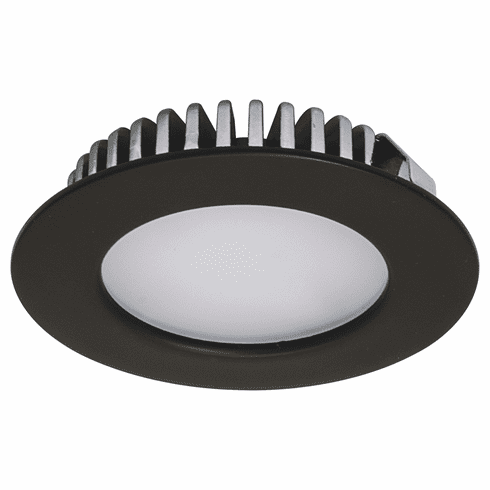

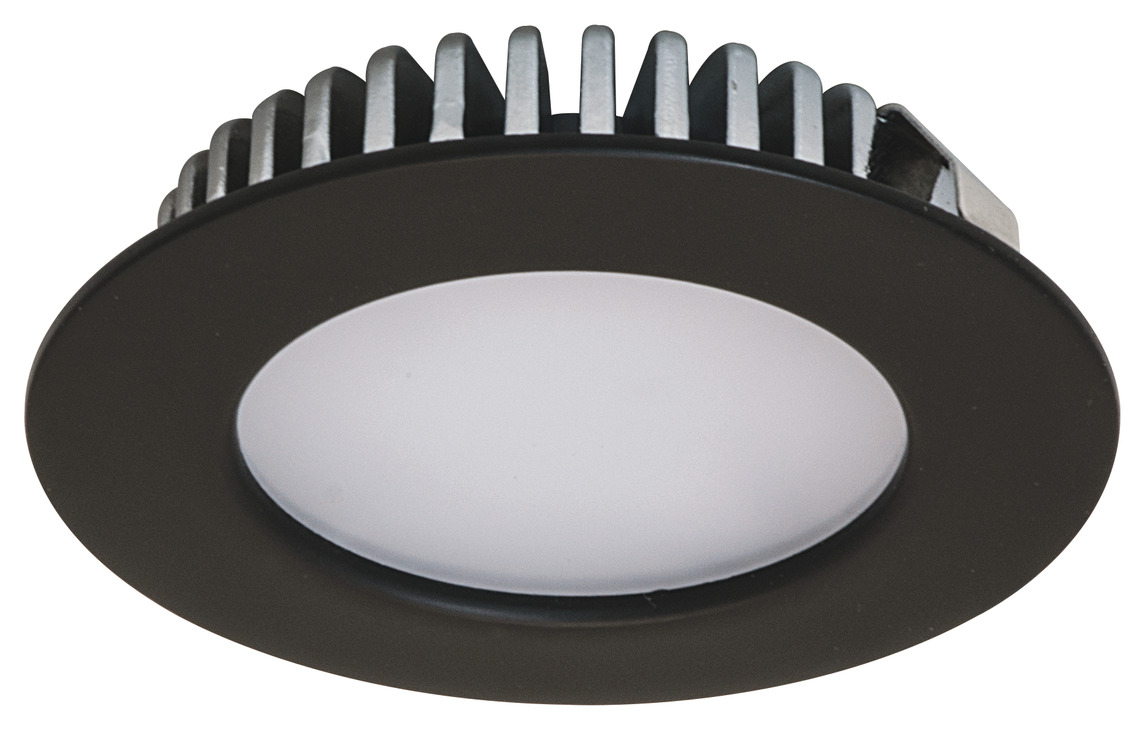

Hafele 833.72.287 Recess/Surface Mounted Downlight, Loox LED 2020, 12 V Black, cool white 5000 K, 3.2 W,

Product Information

• Description

  Manufacturer: Hafele
  Item: 833.72.287

  Product Title: Recess/Surface Mounted Downlight, Monochrome, Loox LED 2020, 12 V, Drill hole ?: 55 mm (2 3/16"), Black, cool white 5000 K, 3.2 W

  Category: Recess/Surface Mounted Downlight, Monochrome, Loox LED 2020, 12 V, Drill hole ?: 55 mm (2 3/16")

  Item Details …

  - High-quality metal housing

  - Splash proof for use in wet rooms

  - Nominal voltage : 12.00 V

  - Wattage : 3.20 W

  - Drill hole ุ : 55.00 mm

  - Model : LED 2020

  - Installation : For mounting in drilled hole and for clamp fixing

  - Installation reference : Degree of protection with surface mounted housing is IP 20

  - Version : Suitable for wet rooms

  - Energy efficiency class : G

  - Drill hole ุ : 2 3/16"

  - Height (inch) : 9/16"

  - Cable length : 78 3/4"

  - Dimmable : yes

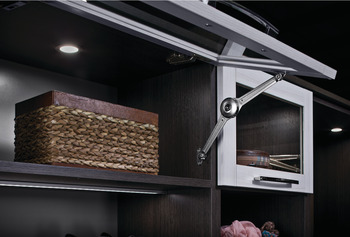

  - Area of application : For display cabinets, shelving units and shelves

  - Housing material : Zinc alloy

  - Degree of protection : IP44 (recess mounted light); IP20 (surface mounted downlight)

  - Supplied with:

  - (78 3/4") 2m lead


  Additional Information …

  The degree of protection IP44 is reduced to IP20 when surface mounting or recess mounting with through hole.
